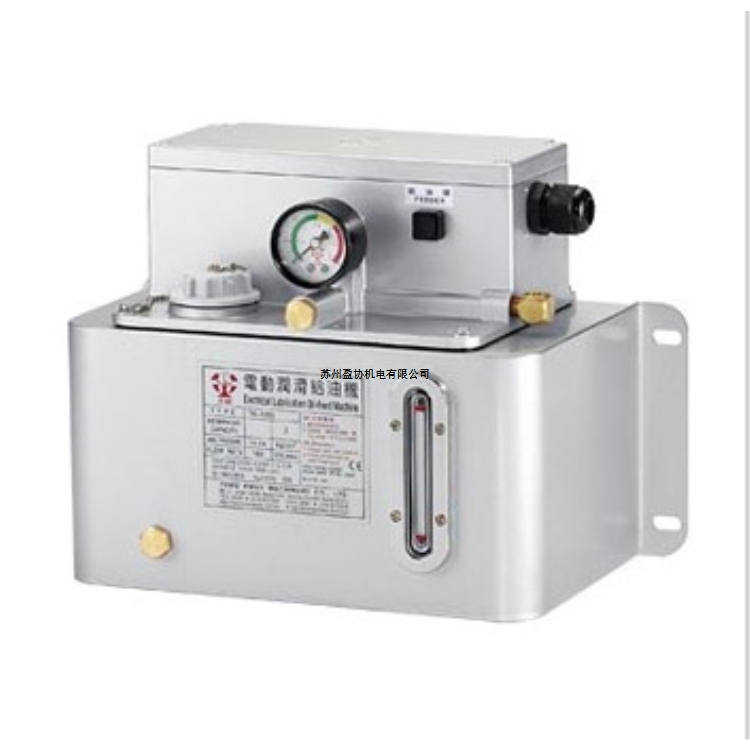

          臺灣tswukwan志觀電動潤滑給油機TK-1203 4L
          臺灣tswukwan志觀電動潤滑給油機TK-1203 4L
          產品價格:¥3200(人民幣)
        1. 規格:TK-1203 4L
        2. 發貨地:蘇州
        3. 品牌:
        4. 最小起訂量:1套
        5. 誠信商家
          會員級別:鉆石會員
          認證類型:企業認證
          企業證件:通過認證

          商鋪名稱:蘇州盈協機電有限公司

          聯系人:趙先生(先生)

          聯系手機:

          固定電話:

          企業郵箱:2958065842@qq.com

          聯系地址:蘇州相城區經濟技術開發區澄陽街道如元路8號12幢7樓706室

          郵編:215131

          聯系我時,請說是在焊材網上看到的,謝謝!

          商品詳情

            說明


            ? This oil feeder is capable of working with the software of the machine and equipped with pressure overload protecting device and oil shortage of the tank and the oil pipe pressure switch warning system. Do not use recycled or recovered oil to avoid blocking the oil pipe or filter that will shorten the durability of the machine and periodically clean the filter once every 3-5 months.


            TYPE TK-1203 TK-1203A TK-1203E TK-1203AE
            流量 Max.Flow 180cc/min 180cc/min 180cc/min 180cc/min
            壓力 Pressure 5~15kg/c㎡ 5~15kg/c㎡ 12~15kg/c㎡ 12~15kg/c㎡
            浮球開關 Float Swith
            油箱容量 Oil Tank Capacity 3L . 4L . 8L
            管路壓力訊號裝置
            Oil Pipe Pressure Signal
            選配 Take Your Choice
            釋壓保護裝置
            Pressure Protection Device
            潤滑時間
            Lubricating Timing (min)
              1-120秒 (sec)   1-120秒 (sec)
            間歇時間
            Intermittent Timing (min)
              1-180分 (min)   1-180分 (min)
            電壓
            Voltage (50/60Hz) Single Phase
            110v or 200v
            單相
            110v or 200v
            單相
            110v or 200v
            單相
            110v or 200v
            單相
            馬達出力功訊率
            Consumption Power
            20W 20W 20W 20W
            脫壓裝置
            (E) Pressure Relief Divice

            接頭口徑 Joint Dia 4Φ or  6Φ 4Φ or  6Φ 4Φ or  6Φ 4Φ or  6Φ
            ※備註 (Remark) 配合比例式分油座使用
            Use Proportional Oil Distribution
            配合容積式分油座使用
            Use Content Type Oil Distribution
