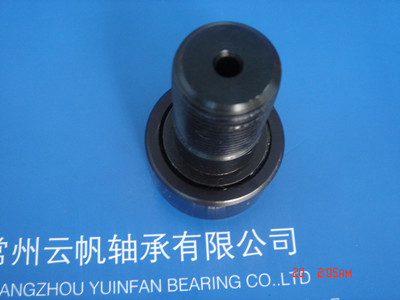

曲線滾輪 英制 |
|
CR...R |
CR CR...UUR CR...UU |
CR...R,CR, CR...UUR, CR...UU |
軸 徑 mm |
軸 承 型 號 |
外 型 尺 寸mm |
||||||
基本型 |
密封型 |
|||||||
球面外徑 |
圓柱外徑 |
球面外徑 |
圓柱外徑 |
d1 |
D |
C |
B |
|
4.826 |
CR 8 R |
CR 8 |
CR 8 UUR |
CR 8 UU |
4.826 |
12.700 |
8.731 |
9.525 |
CR 8-1 R |
CR 8-1 |
CR 8-1 UUR |
CR 8-1 UU |
4.826 |
12.700 |
9.525 |
10.319 |
|
6.350 |
CR 10 R |
CR 10 |
CR 10 UUR |
CR 10 UU |
6.350 |
15.875 |
10.319 |
11.112 |
CR 10-1 R |
CR 10-1 |
CR 10-1 UUR |
CR 10-1 UU |
6.350 |
15.875 |
11.112 |
11.906 |
|
9.525 |
CR 12 R |
CR 12 |
CR 12 UUR |
CR 12 UU |
9.525 |
19.050 |
12.700 |
13.494 |
CR 14 R |
CR 14 |
CR 14 UUR |
CR 14 UU |
9.525 |
22.225 |
12.700 |
13.494 |
|
11.112 |
CR 16 R |
CR 16 |
CR 16 UUR |
CR 16 UU |
11.112 |
25.400 |
15.875 |
16.669 |
CR 18 R |
CR 18 |
CR 18 UUR |
CR 18 UU |
11.112 |
28.575 |
15.875 |
16.669 |
|
12.700 |
CR 20 R |
CR 20 |
CR 20 UUR |
CR 20 UU |
12.700 |
31.750 |
19.050 |
19.844 |
CR 22 R |
CR 22 |
CR 22 UUR |
CR 22 UU |
12.700 |
34.925 |
19.050 |
19.844 |
|
15.875 |
CR 24 R |
CR 24 |
CR 24 UUR |
CR 24 UU |
15.875 |
38.100 |
22.225 |
23.019 |
CR 26 R |
CR 26 |
CR 26 UUR |
CR 26 UU |
15.875 |
41.275 |
22.225 |
23.019 |
|
19.050 |
CR 28 R |
CR 28 |
CR 28 UUR |
CR 28 UU |
19.050 |
44.450 |
25.400 |
26.194 |
CR 30 R |
CR 30 |
CR 30 UUR |
CR 30 UU |
19.050 |
47.625 |
25.400 |
26.194 |
|
22.225 |
CR 32 R |
CR 32 |
CR 32 UUR |
CR 32 UU |
22.225 |
50.800 |
31.750 |
32.544 |
CR 36 R |
CR 36 |
CR 36 UUR |
CR 36 UU |
22.225 |
57.150 |
31.750 |
32.544 |
|
以下表格接上
外 型 尺 寸mm |
裝配尺寸 |
最大擰緊 |
基本額定負荷 |
極限轉速 rpm |
||||||
C CO |
||||||||||
B1 |
g 1 |
g 2 |
G1 |
B3 |
r |
mm |
kgf.m |
kgf |
kgf |
|
22.225 |
3.175 |
-- |
6.350 |
-- |
0.397 |
8.334 |
0.2 |
260 |
220 |
28000 |
26.194 |
3.175 |
-- |
6.350 |
-- |
0.397 |
8.334 |
0.2 |
260 |
220 |
28000 |
26.988 |
3.175 |
-- |
7.938 |
-- |
0.397 |
11.509 |
0.3 |
370 |
370 |
21000 |
30.956 |
3.175 |
-- |
7.938 |
-- |
0.397 |
11.509 |
0.3 |
370 |
370 |
21000 |
35.719 |
4.762 |
2.381 |
9.525 |
6.350 |
0.794 |
13.494 |
1.8 |
450 |
520 |
15000 |
35.719 |
4.762 |
2.381 |
9.525 |
6.350 |
0.794 |
15.081 |
1.8 |
490 |
590 |
14000 |
42.063 |
4.762 |
3.175 |
12.700 |
6.350 |
1.191 |
17.859 |
2.0 |
900 |
1100 |
13000 |
42.063 |
4.762 |
3.175 |
12.700 |
6.350 |
1.588 |
19.050 |
2.0 |
940 |
1180 |
12000 |
51.594 |
4.762 |
3.175 |
15.875 |
7.938 |
1.588 |
21.828 |
2.9 |
1450 |
1630 |
11000 |
51.594 |
4.762 |
3.175 |
15.875 |
7.938 |
1.588 |
21.828 |
2.9 |
1450 |
1630 |
11000 |
61.119 |
4.762 |
3.969 |
19.050 |
9.525 |
1.588 |
26.196 |
6.6 |
1890 |
2470 |
8500 |
61.119 |
4.762 |
3.969 |
19.050 |
9.525 |
1.588 |
26.196 |
6.6 |
1890 |
2470 |
8500 |
70.644 |
4.762 |
3.969 |
22.225 |
11.112 |
1.588 |
32.543 |
12 |
2560 |
3900 |
7000 |
40.644 |
4.762 |
3.969 |
22.225 |
11.112 |
1.588 |
32.543 |
12 |
2560 |
3900 |
7000 |
83.344 |
4.762 |
4.762 |
25.400 |
12.700 |
1.588 |
37.306 |
19 |
3310 |
6510 |
5500 |
83.344 |
4.762 |
4.762 |
25.400 |
12.700 |
1.588 |
37.306 |
19 |
3310 |
6510 |
5500 |
