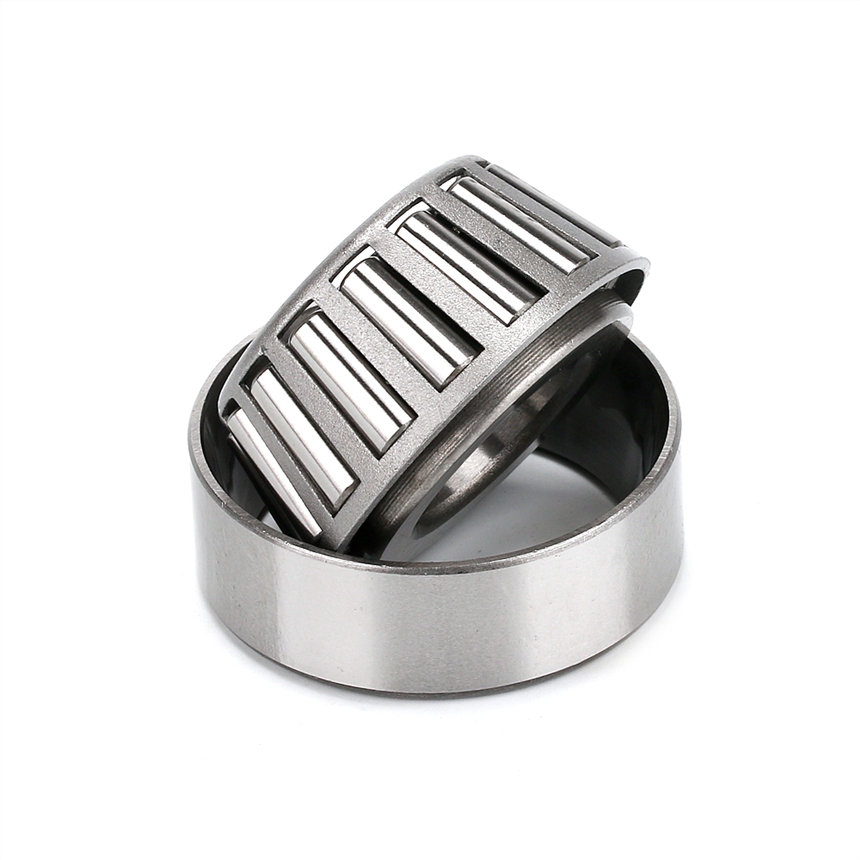

產品類型：英制圓錐滾子軸承
軸承型號:HM89448/HM89410
內徑(d): 36.512mm
外徑(D):76.200mm
裝配高度(T):29.370mm
內圈高度(B):28.575mm
外圈高度(C):23.020mm
重量:0.62KG
硬度:59-62HRC
保持器：壓頂保持器
材質：軸承鋼，GCR15
外觀：精美，光亮，無劃痕，無磕碰傷
包裝：工業包裝或單個彩盒包裝
防銹：防銹質保二年
產品特點：高轉速 壽命長 高精度 低噪音
臨清市普菲軸承有限公司專業生產深溝球軸承和圓錐滾子軸承，英制圓錐滾子軸承，
產品全檢。內套和外套可以互換使用，按您要求來做包裝，如有需要，歡迎隨時詢價！
| ITEM NO. | d(mm) | D(mm) | B(mm) | Weight(kg) |
| 2793/2729 | 34.925 | 76.2 | 25.654 | 0.541 |
| HM89446/HM89410 | 34.925 | 76.2 | 28.575 | 0.646 |
| 31593/31520 | 34.925 | 76.2 | 28.575 | 0.625 |
| 31594/31520 | 34.925 | 76.2 | 28.575 | 0.627 |
| 3478/3420 | 34.925 | 79.375 | 29.771 | 0.725 |
| 3379/3320 | 34.925 | 80.167 | 30.391 | 0.732 |
| 3872/3820 | 34.925 | 85.725 | 30.162 | 0.897 |
| 14139/14276 | 34.976 | 69.012 | 19.583 | 0.333 |
| L68149/L68111 | 34.988 | 59.974 | 16.764 | 0.179 |
| LM78349A/LM78310A | 34.988 | 61.973 | 17 | 0.209 |
| LM78349/LM78310C | 34.988 | 61.973 | 17 | 0.218 |
| JS3549A/JS3510 | 35 | 70 | 23.5 | 0.42 |
| 26883/26822 | 35 | 79.375 | 25.4 | 0.61 |
| 339/332 | 35 | 80 | 22.403 | 0.534 |
| HM88648/HM88610 | 35.717 | 72.233 | 25.4 | 0.478 |
| HM88648/HM88611AS | 35.717 | 72.626 | 25.4 | 0.482 |
| 25880/25821 | 36.487 | 73.025 | 24.608 | 0.457 |
| 2780/2720 | 36.487 | 76.2 | 25.654 | 0.518 |
| HM89448/HM89410 | 36.512 | 76.2 | 28.575 | 0.629 |
| HM89449/HM89411 | 36.512 | 76.2 | 28.575 | 0.631 |
| 31597/31520 | 36.512 | 76.2 | 28.575 | 0.605 |
| HM89249/HM89210 | 36.512 | 79.375 | 28.829 | 0.686 |
| 3479/3420 | 36.512 | 79.375 | 29.771 | 0.707 |
| 44143/44348 | 36.512 | 88.5 | 23.698 | 0.729 |
| JL69349/JL69310 | 38 | 63 | 17 | 0.198 |
| 13889/13830 | 38.1 | 63.5 | 11.908 | 0.147 |
| LM29748/LM29710 | 38.1 | 65.088 | 18.288 | 0.233 |
| 13685/13621 | 38.1 | 69.012 | 19.05 | 0.28 |
| 13687/13621 | 38.1 | 69.012 | 19.05 | 0.296 |
| 19150/19281 | 38.1 | 71.438 | 16.52 | 0.273 |
| 16150/16282 | 38.1 | 72 | 20.638 | 0.331 |
| 28150/28300 | 38.1 | 76.2 | 76.2 | 0.405 |
| 2776/2720 | 38.1 | 76.2 | 76.2 | 0.495 |
| 2788/2720 | 38.1 | 76.2 | 76.2 | 0.497 |
