防爆防腐控制箱∥∥ 1. For the dangerous sites with explosive air mixture:

　　防爆防腐控制箱∥∥ 1 division、2 division;

　　防爆防腐控制箱∥∥ 2. Flammable gas, steam class：ⅡA、ⅡB、ⅡC;

　　防爆防腐控制箱∥∥ 3. Temperatures classification：T1~T6;

　　防爆防腐控制箱∥∥ 4. Indoor and outdoor (IP65) 。

　　防爆防腐控制箱∥∥ 1. 爆炸性氣體環境危險場所：1區、2區;

　　防爆防腐控制箱∥∥ 2. 可燃性氣體、蒸氣級別：ⅡA、ⅡB、ⅡC;

　　防爆防腐控制箱∥∥ 3. 溫度組別：T1~T6;

　　防爆防腐控制箱∥∥ 4. 戶內、戶外 (IP65)。

　　防爆操作柱∥∥ 1. The increased safety is mounted the flame-proofing elements inside;

　　防爆操作柱∥∥ 2. The pressing shell made of fiberous glass, reinforced unsaturated polyster resin has elegant out looking and good properties for corrosion-proof, static electrity resistance impact resistance and reliable-heating;

　　防爆操作柱∥∥ 3. The flame-proofing controlling with tight structure, good reliability and small bulk has strong capacity for cutting out and in, and the long service life, etc;

　　防爆操作柱∥∥ 4. Besides the varieties listed in the table, control switch contact's contacting type and operation position can be chosen specially according the requirement of users;

　　防爆操作柱∥∥ 5. The element arrangement combination can be freely combined according to the re-quirement of users;

　　防爆操作柱∥∥ 6. All the fastening pieces are adopted the stainless steel screw;

　　防爆操作柱∥∥ 7. Cable wiring.

　　防爆操作柱∥∥ 8. Suitable for GB3836-2000、IEC60079, GB12476.1-2000、IEC61241 standard request.

　　防爆操作柱∥∥ 1. 外殼內裝隔爆型元件;

　　防爆操作柱∥∥ 2. 外殼采用玻璃纖維增強不飽合聚脂樹脂壓制而成，具有外形美觀、耐腐蝕、抗靜電，耐沖擊及熱穩定性好等優良性能;

　　防爆操作柱∥∥ 3. 隔爆型控制開關具有結構緊湊、可靠性好、體積小、通斷能力強、壽命長等優點;

　　防爆操作柱∥∥ 4. 控制開關觸頭接觸型式和操作位置除表中所列品種外，還可根據用戶要求特殊選擇;

　　防爆操作柱∥∥ 5. 元件排列組合可按用戶要求隨意組合;

　　防爆操作柱∥∥ 6. 所有的堅固件都采用不銹鋼螺釘;

　　防爆操作柱∥∥ 7. 電纜布線

　　防爆操作柱∥∥ 8. 符合GB3836-2000、IEC60079, GB12476.1-2000、IEC61241標準要求。

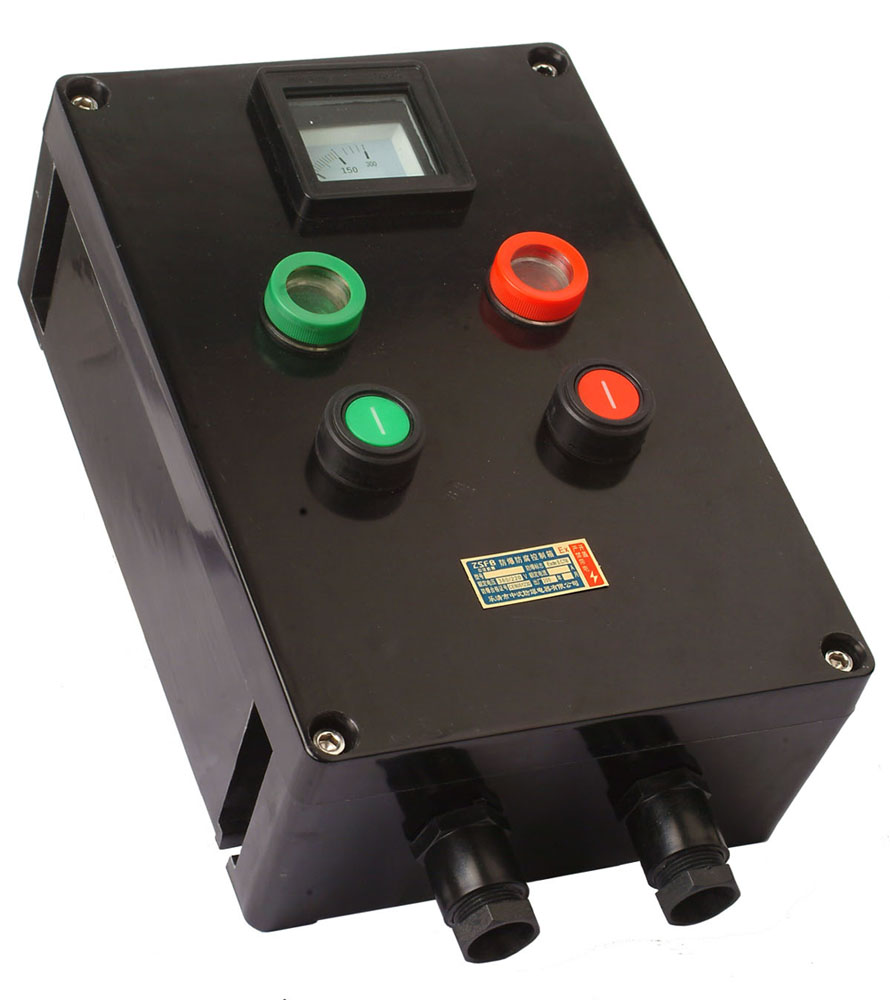

(?***********y⊙? )(?***********y⊙? )BZK8038防爆防腐控制箱(操作柱)(?***********y⊙? )

　　BZK8038 ∥ ∥ 主要技術數據

　　BZK8038 ∥ ∥ 防護等級

　　BZK8038 ∥ ∥ IP65

　　BZK8038 ∥ ∥ 防爆標志

　　BZK8038 ∥ ∥ Exed Ⅱ CT6

　　BZK8038 ∥ ∥ 防腐等級

　　BZK8038 ∥ ∥ WF2

　　BZK8038 ∥ ∥ 額定工作電流(A)

　　BZK8038 ∥ ∥ 6※4※6※0.5※0.2

　　BZK8038 ∥ ∥ 額定工作電壓 (V)

　　BZK8038 ∥ ∥ AC220 ※AC380※DC24※DC110※DC220

　　BZK8038 ∥ ∥ 額定絕緣電壓(V)

　　BZK8038 ∥ ∥ 500
