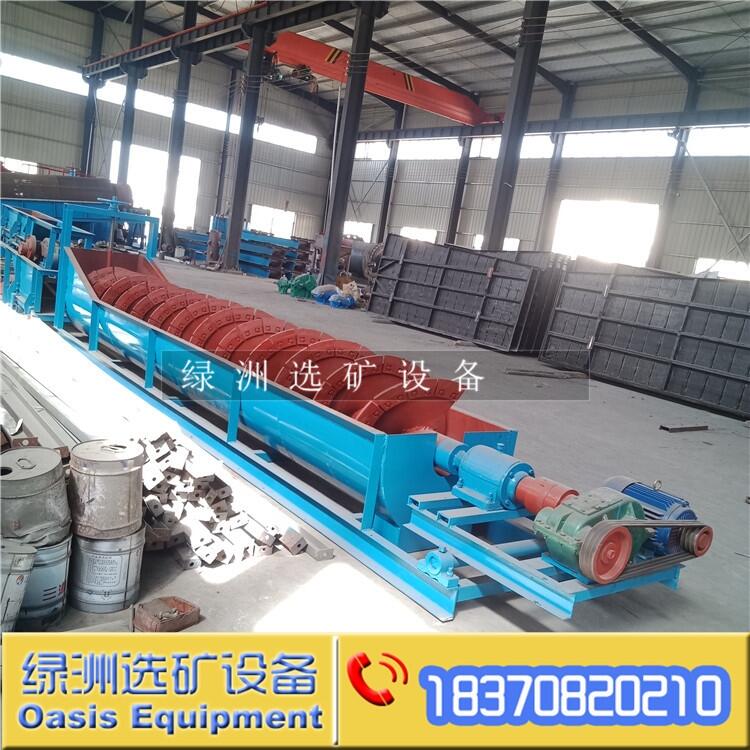

螺旋分級機Spiral Classifier
螺旋分級機適用于礦石,非金屬的物料進行分級,脫水,脫泥等作業.主要用于濕式磨礦系統中磨礦機組成閉路循環流程,磨碎的礦物通過本機可獲得細粒的溢流和粗粒的返砂兩種產品.該螺旋分級機分有:FG高堰式單/雙螺旋分級機,FC沉沒式單/雙螺旋分級機,另螺旋分級機可分為單螺旋和雙螺旋Spiral classifier is suitable for ore,nonmetal materials were classified,dehydration,to take off the mud etc.mainly for the wet grinding system grinding units into closed-circuit circulation flow,grinding machine is available through the mineral fine grains of relief and coarse grained return sand two products.FG typeThe Spiral classifier have : High Weir Spiral Classifier(single and double)FC type sunk Spiral Classifier(single and double)
|
類型Type |
型號Model |
轉速speed |
槽體尺寸Tank(mm) |
傾斜角Inclination angle |
處理量Capacity(m3/d) |
功率Power(kw) |
重量Weight(Kg) |
|||
|
長L |
寬W |
溢流Overflow |
返砂Sand return |
主機Driving |
提升Lifting |
|||||
|
高堰式分級機High Weir |
LZFG300 |
12-30 |
3000 |
320 |
14°-18° |
20 |
80-150 |
1.1 |
0 |
700 |
|
LZFG500 |
8.5-15.5 |
4500 |
555 |
14°-18° |
32 |
143-261 |
1.1 |
0 |
1600 |
|
|
LZFG750 |
4.5-9.9 |
5500 |
830 |
14°-18° |
65 |
256-564 |
3 |
0 |
2900 |
|
|
LZFG1000 |
3.5-7.6 |
6500 |
1112 |
14°-18° |
85 |
473-1026 |
5.5 |
0 |
4400 |
|
|
LZFG1200 |
6 |
6500 |
1372 |
14°-18° |
155 |
1170-1600 |
5.5 |
1.5 |
8800 |
|
|
LZFG1500 |
2.5-6 |
8265 |
1664 |
14°-18° |
235 |
1140-2740 |
7.5 |
2.2 |
11680 |
|
|
LZFG2000 |
3.6-5.5 |
8400 |
2200 |
14°-18° |
400 |
3890-5940 |
11/15 |
3 |
20450 |
|
|
LZFG2400 |
3.64 |
9130 |
2600 |
14°-18° |
580 |
6800 |
15 |
3 |
25650 |
|
|
沉沒式分級機Submersion |
LZFC1000 |
6-7.4 |
8400 |
1112 |
14°-18° |
75 |
473-1026 |
5.5 |
-- |
6000 |
|
LZFC1200 |
5-7 |
8400 |
1372 |
14°-18° |
120 |
1170-1630 |
7.5 |
2.2 |
11020 |
|
|
LZFC1500 |
2.5-6 |
10500 |
1664 |
14°-18° |
185 |
1140-2740 |
7.5 |
2.2 |
15340 |
|
|
LZFC2000 |
3.6-5.5 |
12900 |
2220 |
14°-18° |
320 |
3890-5940 |
11/15 |
3 |
29060 |
|
|
LZFC2400 |
3.64 |
11130 |
2600 |
14°-18° |
455 |
6800 |
18.5 |
4 |
37267 |
|
