	                			REF-20-S不銹鋼法蘭減壓閥臺灣日泰Z-TIDE閥門 特價活動






	                			REF-20-S不銹鋼法蘭減壓閥臺灣日泰Z-TIDE閥門 特價活動




	                			產品價格：￥10（人民幣）





        1. 規格：REF-20-S
          2.

        2. 發貨地：上海
          3.

        3. 品牌：
          4.

        4. 最小起訂量：1件
          5.











	                			誠信商家





	                			會員級別：鉆石會員




	                			認證類型：企業認證




	                			企業證件：通過認證















          商鋪名稱：上海達瓊流體科技有限公司


          聯系人：賴金順（先生）



          聯系手機：


          固定電話：


          企業郵箱：DAQIONG021@126.COM


          聯系地址：上海市奉賢區五四公路4399號


          郵編：201422


          聯系我時，請說是在焊材網上看到的，謝謝！


























                    商品詳情










	REF-20-S不銹鋼法蘭減壓閥臺灣日泰Z-TIDE閥門 特價活動




	上海達瓊流體科技有限公司專業銷售Z-TIDE產品，源頭供應臺灣Z-TIDE（日泰）產品備件，價格優惠，現貨供應，品質保證，采購首選


品牌介紹：

       臺灣日泰（Z-Tide）為臺灣專業水用閥門生產商，產品可應用于給水、空調、消防系統等。產品獲ISO9001認證。其產品材質范圍廣，主要有：鑄鐵、球墨鑄鐵、铇青銅、不銹鋼等。

       生產的產品主要包括：減壓閥（直動式、先導式）、持壓閥、泄壓閥、定水位閥（浮球閥）、電磁閥、減壓閥組、靜音止回閥、水錘吸收器（隔膜式、彎頭式、直型、T型、角式等）。

       上海達瓊流體科技有限公司為臺灣Z-Tide閥門在大陸地區的總代理，負責其產品在大陸地區的銷售、售后服務、技術支持等工作。

電話: 021-51870570

手機：15201798507

QQ：1984404050



	地址：上海市奉賢區五四公路4399號




	REF-20-S不銹鋼法蘭減壓閥臺灣日泰Z-TIDE閥門 特價活動

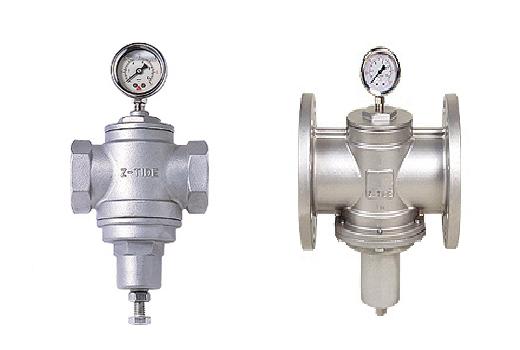

													Model：REF(Flange Type)、RET(Thread Type)
















































																	 Product accent：









            •
																			Valve Body is made by Stainless Steel #316, suitable for fluid, air and vapor.

              •

            •
																			The gate is balanced-pressure designed, which will not influence the outlet pressure caused by unstable inlet pressure.

              •

            •
																			When the outlet pressure responds directly to the pressure control chamber and adjusts the setting pressure, it responds quickly and adjusts the pressure accurately.

              •

            •
																			Design of piston and diaphragm improves the inability of sustaining pressure and leakage.

              •

            •
																			Pressure Adjusting Range：

(1 kgf/cm2 = 14.2 psi)

1kgf / cm2～6kgf / cm2

4kgf / cm2～10kgf / cm2

8kgf / cm2～13kgf / cm2

              •

            •
																			Applied Temperature：

-15℃～80℃

              •

            •
																			Valve Body Testing Pressure ：35 kgf/cm2


              •

            •
																			Please cover steam pipelines with thermal materials

              •

            •
																			Special order can be arranged for higher pressure adjustment range


              •







































										Thread Type-illustration


































            1.
																				Pressure Gauge

              2.

            2.
																				Upper Cover：Stainless Steel 316

              3.

            3.
																				U-ring：NBR / Viton

              4.

            4.
																				Piston：Stainless Steel 316

              5.

            5.
																				Sealing Spacer：NBR / Viton/Teflon

              6.

            6.
																				Shaft：Stainless Steel 316

              7.

            7.
																				Main Body：Stainless Steel 316

              8.

            8.
																				Diaphragm：NBR / Viton

              9.

            9.
																				HU-ring：NBR / Viton

              10.

            10.
																				Spring：Spring Steel

              11.

            11.
																				Lower Cover：Stainless Steel 316

              12.

            12.
																				Washer ：Brass

              13.

            13.
																				Adjusting Stem：Stainless Steeel 304

              14.
































														Item No


														Thread Type


														H


														L


														CV






														RET-15S


														1/2"


														75


														71


														2.5






														RET-20S


														3/4"


														75


														86


														4.0






														RET-25S


														1"


														81


														90


														6.5






														RET-40S


														1 1/2"


														115


														115


														13.0






														RET-50S


														2"


														115


														120


														17.0








											尺寸單位：mm



















										Flange Type-illustration




































            1.
																				Pressure Gauge

              2.

            2.
																				Upper Cover：Stainless Steel

              3.

            3.
																				O-ring：NBR / Viton

              4.

            4.
																				U-ring：NBR / Viton

              5.

            5.
																				Piston：Stainless Steel 316

              6.

            6.
																				Sealing Spacer：NBR / Viton

              7.

            7.
																				Shaft：Stainless Steel 316

              8.

            8.
																				Diaphragm：NBR / Viton

              9.

            9.
																				Main Body：Stainless Steel 316

              10.

            10.
																				UH-ring：NBR / VIiton

              11.

            11.
																				Fixed Bolt：Stainless Steel 304

              12.

            12.
																				Spring：Spring Steel

              13.

            13.
																				Lower Cover：Stainless Steel 316

              14.

            14.
																				Washer：Brass

              15.

            15.
																				Adjusting Stem：Stainless Steel 304

              16.
































														Item No


														Flange Type


														H


														L


														CV






														REF-15-S


														1/2"


														75


														150


														2.5






														REF-20-S


														3/4"


														82


														150


														4.0






														REF-25-S


														1"


														82


														150


														6.5






														REF-40-S


														1 1/2"


														115


														190


														13.0






														REF-50-S


														2"


														115


														192


														17.0






														REF-65-S


														2 1/2"


														185


														210


														30.0






														REF-80-S


														3"


														185


														225


														42.0






														REF-100-S


														4"


														230


														250


														75.0






														REF-150-S


														6"


														290


														310


														170.0








											 尺寸單位：mm



















										Applied Condition of Direct-activated Pressure Reducing Valve




























            •
												Installing pressure reducing valve directly in the sub-pipe can reduce fluid pressure inside the pipe.

              •

            •
												Installing a filter in the inlet of pressure reducing valve can prevent block of valve gate caused by impurities and limescale.

              •

            •
												Installing pressure relief valve downstream pressure reducing valve can protect the system.

              •

            •
												While using screws to connect pressure reducing valve, joints should be installed in the inlet and outlet to make maintenance easy.

              •



















										Pressure Setting and Flow Rate of Direct-activated Pressure Reducing Valve




















											Direct-activated pressure reducing valve directly opens and closes the valve gate by the outlet pressure. When outlet pressure is under setting pressure, valve gate automatically opens. To make valve gate fully open, adjustable pressure range and setting pressure are relative points.






												A: Pressure drop needed for fully-opened valve gate = , B=Adjustable Pressure Range Maximum – Minimum

B：Adjustable Pressure Range (=Maximum Minimum Adjustable Pressure Range)

C：Setting Pressure of Outlet

D：Pressure of fully-opened outlet valve gate, P=C-A




												Example：

Pressure drop needed for fully-opened valve gate for adjusting pressure range 3~9 kgf/cm2 of direct-activated pressure reducing valve.



If the setting pressure of outlet is 6kgf / cm2, pressure of fully-opened valve gate will be P=6-1.5=4.5 kgf/ cm2(Outlet pressure should go down under 4.5kgf/ cm2 to make valve gate fully open)





















										Flow Chart of Direct-activated Pressure Reducing Valve
