多諾特DOROT 95系列氣動閥、96系氣動閥

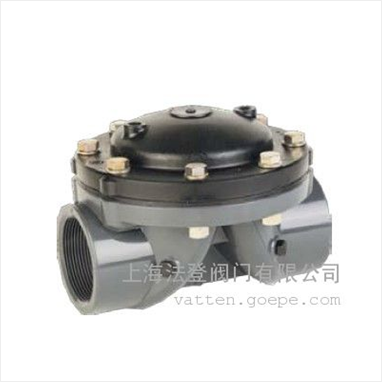

uPVC Valves
The uPVC valves, models 95 (threaded) and 96 (solvent
welded directly to the pipe) are made for high-flow irrigation
plots and flood tables. The direct- attachment to the PVC
pipelines and the optional underground installation, save
cost of valve configurations and reduce head losses. Unique
diaphragm design generates surge- free closure even at
high velocities.
Unique hydrodynamic design allows exceptionally low
pressure losses at high flow rates, stable regulation from
maximal to near zero flows, surge-free closure and simple,
minimal maintenance.
Features and Benefits
? Structural simplicity
? Superb hydraulic performance
? Reliable control of corrosive liquids
? Light-weight, cost-saving
? Minimum maintenance - maximum dependability
Technical Data
Pressure losses Dimensions
Dimension 90mm, 3” 110mm, 4” 160mm, 6”
Height
(H)
mm 195 202 380
inch 711/16 715/16 1415/16
Length
(L)
mm 258 278 360
inch 103/16 1015/16 143/16
Vol.control
chamber
lit 2.6 2.6 9.9
gal 0.7 0.7 2.6
Weight
kg 4 4.2 11.8
lbs 8.8 9.2 26
Operation data
90mm, 3” 110mm, 4” 160mm, 6”
Max. Flow
m3/hr 90 160 350
gpm 400 700 1540
Pressure range
bar 0.6 - 8 0.5 - 10
psi 9 - 115 7 - 145
Max. Water
Temp.
°C 40
°F 104
