AVENTICS緊湊型氣缸R422001413上海韋米機電設備有限公司主要銷售產品，銷售熱線：021-61116913；聯系人：雷青；業務QQ：2896079243；手機微信：13524123009；郵箱leiqing@wei-mi.com；傳真021-51334670；原廠直銷，質量保障，價格優惠！

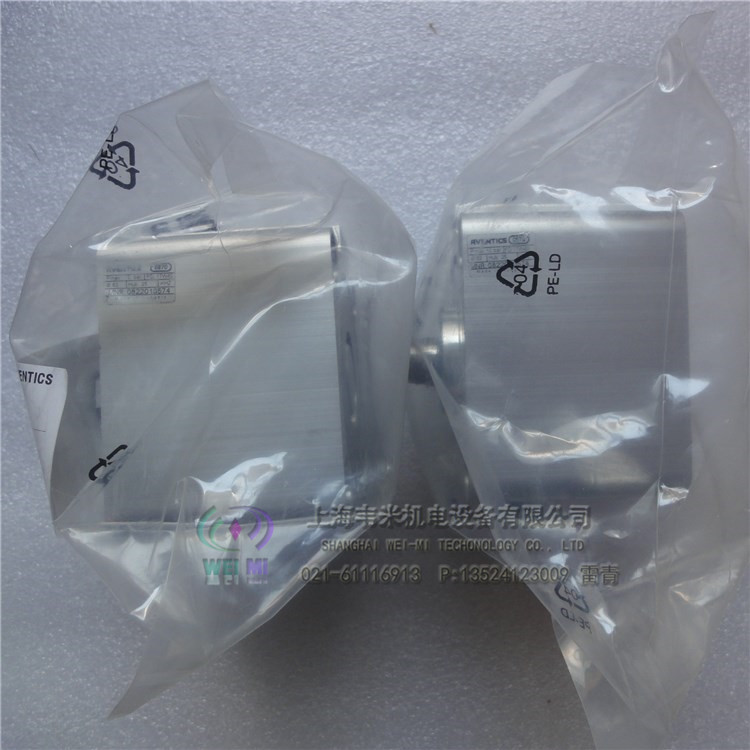

安沃馳AVENTICS緊湊型氣缸 ISO 21287, 系列 CCI-R422001413
實用原則 單作用式，不受壓縮回
緩沖 彈性
磁性銷釘 帶磁性活塞
活塞直徑 20 mm
活塞桿螺紋 M6
標準化 ISO 21287
行程 15 mm
密封件材料 聚氨酯
防塵圈 聚氨酯
壓縮空氣連接 M5
壓縮空氣接口型號 內螺紋
標準 ISO 21287
壓縮空氣連接 內螺紋
環境溫度范圍 -20 ... 80 °C
介質溫度范圍 -20 ... 80 °C
介質 壓縮空氣
顆粒大小 max. 50 μm
壓縮空氣中的含油量 0 ... 5 mg/m3
確定活塞推力的壓力 6 bar
材料
氣缸管子 鋁材, 陽極氧化處理
活塞桿 不銹鋼
前端蓋板 鋁材
后蓋 鋁材
密封 聚氨酯
防塵圈 聚氨酯
壓力露點必須至少低于環境和介質溫度 15 °C ，并且允許 的最高溫度為 3 °C 。
壓縮空氣的油含量必須在整個使用壽命中保持不變。

氣缸是由缸筒、端蓋、活塞、活塞桿和密封件等組成：
1）缸筒
缸筒的內徑大小代表了氣缸輸出力的大小。活塞要在缸筒內做平穩的往復滑動，缸筒內表面的表面粗糙度應達到Ra0.8μm。
2）端蓋
端蓋上設有進排氣通口，有的還在端蓋內設有緩沖機構。桿側端蓋上設有密封圈和防塵圈，以防止從活塞桿處向外漏氣和防止外部灰塵混入缸內。桿側端蓋上設有導向套，以提高氣缸的導向精度，承受活塞桿上少量的橫向負載，減小活塞桿伸出時的下彎量，延長氣缸使用壽命。導向套通常使用燒結含油合金、前傾銅鑄件。端蓋過去常用可鍛鑄鐵，為減輕重量并防銹，常使用鋁合金壓鑄，微型缸有使用黃銅材料的。
3）活塞
活塞是氣缸中的受壓力零件。為防止活塞左右兩腔相互竄氣，設有活塞密封圈�；钊�上的耐磨環可提高氣缸的導向性，減少活塞密封圈的磨耗，減少摩擦阻力。耐磨環長使用聚氨酯、聚四氟乙烯、夾布合成樹脂等材料。活塞的寬度由密封圈尺寸和必要的滑動部分長度來決定。滑動部分太短，易引起早期磨損和卡死。活塞的材質常用鋁合金和鑄鐵，小型缸的活塞有黃銅制成的。
4）活塞桿
活塞桿是氣缸中最重要的受力零件。通常使用高碳鋼、表面經鍍硬鉻處理、或使用不銹鋼、以防腐蝕，并提高密封圈的耐磨性。
5）密封圈
回轉或往復運動處的部件密封稱為動密封，靜止件部分的密封稱為靜密封。
缸筒與端蓋的連接方法主要有以下幾種：
整體型、鉚接型、螺紋聯接型、法蘭型、拉桿型。
6）氣缸工作時要靠壓縮空氣中的油霧對活塞進行潤滑。也有小部分免潤滑氣缸。

AVENTICS緊湊型氣缸R422001413

ISO21287,系列CCI
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001392
R422001393
R422001394
R422001395
R422001396
R422001402
R422001403
R422001404
R422001405
R422001406
R422001412
R422001413
R422001414
R422001415
R422001416
R422001422
R422001423
R422001424
R422001425
R422001426
R422001432
R422001433
R422001434
R422001435
R422001436
R422001397
R422001398
R422001399
R422001400
R422001407
R422001408
R422001409
R422001410
R422001417
R422001418
R422001419
R422001420
R422001427
R422001428
R422001429
R422001430
R422001437
R422001438
R422001439
R422001440
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001442
R422001443
R422001444
R422001445
R422001446
R422001452
R422001453
R422001454
R422001455
R422001456
R422001462
R422001463
R422001464
R422001465
R422001466
R422001472
R422001473
R422001474
R422001475
R422001476
R422001482
R422001483
R422001484
R422001485
R422001486
R422001447
R422001448
R422001449
R422001450
R422001457
R422001458
R422001459
R422001460
R422001467
R422001468
R422001469
R422001470
R422001477
R422001478
R422001479
R422001480
R422001487
R422001488
R422001489
R422001490
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001492
R422001493
R422001494
R422001495
R422001496
R422001502
R422001503
R422001504
R422001505
R422001506
R422001512
R422001513
R422001514
R422001515
R422001516
R422001522
R422001523
R422001524
R422001525
R422001526
R422001532
R422001533
R422001534
R422001535
R422001536
R422001497
R422001498
R422001499
R422001500
R422001507
R422001508
R422001509
R422001510
R422001517
R422001518
R422001519
R422001520
R422001527
R422001528
R422001529
R422001530
R422001537
R422001538
R422001539
R422001540
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001542
R422001543
R422001544
R422001545
R422001546
R422001552
R422001553
R422001554
R422001555
R422001556
R422001562
R422001563
R422001564
R422001565
R422001566
R422001572
R422001573
R422001574
R422001575
R422001576
R422001582
R422001583
R422001584
R422001585
R422001547
R422001548
R422001549
R422001550
R422001557
R422001558
R422001559
R422001560
R422001567
R422001568
R422001569
R422001570
R422001577
R422001578
R422001579
R422001580
R422001587
R422001588
R422001589
R422001590
R422001586
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001592
R422001593
R422001594
R422001595
R422001596
R422001602
R422001603
R422001604
R422001605
R422001606
R422001612
R422001613
R422001614
R422001615
R422001616
R422001622
R422001623
R422001624
R422001625
R422001626
R422001632
R422001633
R422001634
R422001635
R422001636
R422001597
R422001598
R422001599
R422001600
R422001607
R422001608
R422001609
R422001610
R422001617
R422001618
R422001619
R422001620
R422001627
R422001628
R422001629
R422001630
R422001637
R422001638
R422001639
R422001640
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001642
R422001643
R422001644
R422001645
R422001646
R422001652
R422001653
R422001654
R422001655
R422001656
R422001662
R422001663
R422001664
R422001665
R422001666
R422001672
R422001673
R422001674
R422001675
R422001676
R422001682
R422001683
R422001684
R422001685
R422001686
R422001647
R422001648
R422001649
R422001650
R422001657
R422001658
R422001659
R422001660
R422001667
R422001668
R422001669
R422001670
R422001677
R422001678
R422001679
R422001680
R422001687
R422001688
R422001689
R422001690
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001002
R422001003
R422001004
R422001005
R422001006
R422001012
R422001013
R422001014
R422001015
R422001016
R422001022
R422001023
R422001024
R422001025
R422001026
R422001032
R422001033
R422001034
R422001035
R422001036
R422001042
R422001043
R422001044
R422001045
R422001046
R422001052
R422001053
R422001054
R422001055
R422001056
R422001062
R422001063
R422001064
R422001065
R422001066
R422001072
R422001073
R422001074
R422001075
R422001076
R422001082
R422001083
R422001084
R422001085
R422001086
R422001095
R422001096
R422001105
R422001106
R422001115
R422001116
R422001125
R422001126
R422001007
R422001008
R422001009
R422001010
R422001017
R422001018
R422001019
R422001020
R422001027
R422001028
R422001029
R422001030
R422001037
R422001038
R422001039
R422001040
R422001047
R422001048
R422001049
R422001050
R422001057
R422001058
R422001059
R422001060
R422001067
R422001068
R422001069
R422001070
R422001077
R422001078
R422001079
R422001080
R422001087
R422001088
R422001089
R422001090
R422001097
R422001098
R422001099
R422001100
R422001107
R422001108
R422001109
R422001110
R422001117
R422001118
R422001119
R422001120
R422001127
R422001128
R422001129
R422001130
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001132
R422001133
R422001134
R422001135
R422001136
R422001142
R422001143
R422001144
R422001145
R422001146
R422001152
R422001153
R422001154
R422001155
R422001156
R422001162
R422001163
R422001164
R422001165
R422001166
R422001172
R422001173
R422001174
R422001175
R422001176
R422001182
R422001183
R422001184
R422001185
R422001186
R422001192
R422001193
R422001194
R422001195
R422001196
R422001202
R422001203
R422001204
R422001205
R422001206
R422001212
R422001213
R422001214
R422001215
R422001216
R422001225
R422001226
R422001235
R422001236
R422001245
R422001246
R422001255
R422001256
R422001137
R422001138
R422001139
R422001140
R422001147
R422001148
R422001149
R422001150
R422001157
R422001158
R422001159
R422001160
R422001167
R422001168
R422001169
R422001170
R422001177
R422001178
R422001179
R422001180
R422001187
R422001188
R422001189
R422001190
R422001197
R422001198
R422001199
R422001200
R422001207
R422001208
R422001209
R422001210
R422001217
R422001218
R422001219
R422001220
R422001227
R422001228
R422001229
R422001230
R422001237
R422001238
R422001239
R422001240
R422001247
R422001248
R422001249
R422001250
R422001257
R422001258
R422001259
R422001260
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001692
R422001693
R422001694
R422001695
R422001696
R422001702
R422001703
R422001704
R422001705
R422001706
R422001712
R422001713
R422001714
R422001715
R422001716
R422001722
R422001723
R422001724
R422001725
R422001726
R422001732
R422001733
R422001734
R422001735
R422001736
R422001697
R422001698
R422001699
R422001700
R422001707
R422001708
R422001709
R422001710
R422001717
R422001718
R422001719
R422001720
R422001727
R422001728
R422001729
R422001730
R422001737
R422001738
R422001739
R422001740
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001742
R422001743
R422001744
R422001745
R422001746
R422001752
R422001753
R422001754
R422001755
R422001756
R422001762
R422001763
R422001764
R422001765
R422001766
R422001772
R422001773
R422001774
R422001775
R422001776
R422001782
R422001783
R422001784
R422001785
R422001786
R422001747
R422001748
R422001749
R422001750
R422001757
R422001758
R422001759
R422001760
R422001767
R422001768
R422001769
R422001770
R422001777
R422001778
R422001779
R422001780
R422001787
R422001788
R422001789
R422001790
安沃馳AVENTICS緊湊型氣缸ISO21287,系列CCI
R422001262
R422001263
R422001264
R422001265
R422001266
R422001272
R422001273
R422001274
R422001275
R422001276
R422001282
R422001283
R422001284
R422001285
R422001286
R422001292
R422001293
R422001294
R422001295
R422001296
R422001302
R422001303
R422001304
R422001305
R422001306
R422001312
R422001313
R422001314
R422001315
R422001316
R422001322
R422001323
R422001324
R422001325
R422001326
R422001332
R422001333
R422001334
R422001335
R422001336
R422001342
R422001343
R422001344
R422001345
R422001346
R422001355
R422001356
R422001365
R422001366
R422001375
R422001376
R422001385
R422001386
R422001267
R422001268
R422001269
R422001270
R422001277
R422001278
R422001279
R422001280
R422001287
R422001288
R422001289
R422001290
R422001297
R422001298
R422001299
R422001300
R422001307
R422001308
R422001309
R422001310
R422001317
R422001318
R422001319
R422001320
R422001327
R422001328
R422001329
R422001330
R422001337
R422001338
R422001339
R422001340
R422001347
R422001348
R422001349
R422001350
R422001357
R422001358
R422001359
R422001360
R422001367
R422001368
R422001369
R422001370
R422001377
R422001378
R422001379
R422001380
R422001387
R422001388
R422001389
R422001390

AVENTICS緊湊型氣缸R422001413

磁性接近開關是接近開關的一種，磁性接近開關是傳感器家族中眾多種類中的一個，它是利用電磁工作原理，用先進的工藝制成的，是一種位置傳感器。它能通過傳感器與物體之間的位置關系變化，將非電量或電磁量轉化為所希望的電信號，從而達到控制或測量的目的。
磁性接近開關能以細小的開關體積達到最大的檢測距離。它能檢測磁性物體（一般為永久磁鐵），然后產生觸發開關信號輸出。 由于磁場能通過很多非磁性物，所以此觸發過程并不一定需要把目標物體直接靠近磁性接近開關的感應面，而是通過磁性導體（如鐵）把磁場傳送至遠距離，例如，信號能夠通過高溫的地方傳送到磁性接近開關而產生觸發動作號。

性能特點
在各類開關中，有一種對接近它物件有“感知”能力的元件——位移傳感器。利用位移傳感器對接近物體的敏感特性達到控制開關通或斷的目的，這就是接近開關。
當有物體移向接近開關，并接近到一定距離時，位移傳感器才有“感知”，開關才會動作。通常把這個距離叫“檢出距離”。不同的接近開關檢出距離也不同。
有時被檢測驗物體是按一定的時間間隔，一個接一個地移向接近開關，又一個一個地離開，這樣不斷地重復。不同的接近開關，對檢測對象的響應能力是不同的。這種響應特性被稱為“響應頻率”。

AVENTICS緊湊型氣缸R422001413

ISO15552,系列ICL
安沃馳AVENTICS型材氣缸ISO15552,系列ICL
R412015891
R412015716
R412015892
R412017836
R412017843
R412017848
R412017853
R412017857
R412017863
R412017868
R412017871
安沃馳AVENTICS型材氣缸ISO15552,系列ICL
R480060005
R480060018
R480060026
R480060036
R480060060
R480058830
R480059528
R480060027
R480058890
R480060061
R480060006
R480060019
R480060028
R480060037
R480060063
R480059075
R480060020
R480060029
R480060038
R480060064
R480060007
R480060021
R480060030
R480060039
R480059699
R480060008
R480059526
R480060031
R480060040
R480060065
R480060009
R480060022
R480060032
R480060041
R480059532
R480060010
R480060023
R480060033
R480060043
R480060066
R480060011
R480060024
R480060034
R480060042
R480060067
R480060012
R480059529
R480058941
R480060044
R480060068
R480060013
R480060025
R480060035
R480060045
R480060069
R480060070
R480060080
R480060071
R480060081
R480060072
R480060082
R480060073
R480060083
R480060074
R480060084
R480060075
R480060085
R480060076
R480060086
R480058909
R480060087
R480060077
R480060088
R480060078
R480060089
R480060079
R480060091
安沃馳AVENTICS型材氣缸ISO15552,系列ICL
R480193041
R480193160
R480140572
R480161345
R480193182
R480164229
R480191357
R480178656
R480192685
R480190899
R480189168
R480193161
R480193169
R480140270
R480193183
R480181243
R480193162
R480178406
R480193176
R480140266
R480193155
R480193163
R480140573
R480079636
R480178891
R480156543
R480193164
R480193170
R480193177
R480183597
R480193156
R480193165
R480193171
R480153420
R480193184
R480185615
R480190116
R480193172
R480193178
R480174928
R480193157
R480193166
R480193173
R480193179
R480193185
R480193158
R480193167
R480193174
R480193180
R480189967
R480193159
R480193168
R480193175
R480193181
R480193186
R480193187
R480193196
R480193188
R480193200
R480193189
R480193201
R480173536
R480193202
R480193190
R480178609
R480193191
R480193203
R480193192
R480193204
R480179848
R480193205
R480193193
R480193206
R480193194
R480193207
R480193195
R480193208
ISO15552,系列PRA
安沃馳AVENTICS型材氣缸ISO15552,系列PRA
0822120001
0822121001
0822122001
0822123001
0822124001
0822120002
0822121002
0822122002
0822123002
0822124002
0822120003
0822121003
0822122003
0822123003
0822124003
0822120004
0822121004
0822122004
0822123004
0822124004
0822120005
0822121005
0822122005
0822123005
0822124005
0822120006
0822121006
0822122006
0822123006
0822124006
0822120007
0822121007
0822122007
0822123007
0822124007
0822120008
0822121008
0822122008
0822123008
0822124008
0822120009
0822121009
0822122009
0822123009
0822124009
0822120010
0822121010
0822122010
0822123010
0822124010
0822120011
0822121011
0822122011
0822123011
0822124011
0822125001
R480140491
0822125002
R480140455
0822125003
R480141371
0822125004
R480079499
0822125005
R480140083
0822125006
R480079809
0822125007
R480140833
0822125008
R480141106
0822125009
R480140759
0822125010
R480141373
0822125011
R480141666
安沃馳AVENTICS型材氣缸ISO15552,系列PRA
R480041555
R480041559
R480041563
R480041567
R480041573
R480041556
R480041560
R480041564
R480041568
R480041574
R480041557
R480041561
R480041565
R480041569
R480041575
R480041558
R480041562
R480041566
R480041570
R480041576
R480151537
R480051376
R480045537
R480054955
R480152097
R480143129
R480044478
R480156862
R480152784
R480044479
R480041250
R480151194
R480045822
R480148986
R480068280
R480162928
R480068778
R480152659
R480069183
R480163037
R480162929
R480160211
R480042163
R480148534
R480148937
R480069508
R480162989
R480153304
R480148988
R480157647
R480048725
R480044634
R480070399
R480154536
R480158439
R480041577
R480148022
R480041578
R480141034
R480041579
R480143254
R480041580
R480170767
R480150480
R480170768
R480051377
R480144243
R480163053
R480167296
R480163054
R480170769
R480155887
R480170770
R480163055
R480170771
R480152777
R480170772
安沃馳AVENTICS型材氣缸ISO15552,系列PRA
R480041413
R480041432
R480041443
R480041453
R480041484
R480041419
R480041433
R480041444
R480041454
R480041485
R480041420
R480041434
R480041445
R480041455
R480041487
R480041421
R480041435
R480041446
R480041456
R480041488
R480041422
R480041436
R480041074
R480041457
R480041490
R480041423
R480041437
R480041447
R480041458
R480041491
R480041425
R480041438
R480041448
R480041459
R480041492
R480041426
R480041439
R480041449
R480041460
R480041493
R480041427
R480041440
R480041450
R480041461
R480041494
R480041428
R480041441
R480041451
R480041481
R480041429
R480041442
R480041452
R480041482
R480041497
R480148059
R480148066
R480069994
R480148067
R480148061
R480148068
R480059815
R480142910
R480146278
R480148069
R480148062
R480148070
R480148063
R480148071
R480077546
R480148072
R480148064
R480148073
R480148065
R480148074
R480148060
R480148075
安沃馳AVENTICS型材氣缸ISO15552,系列PRA
R412014229
R412014243
R412014257
R412014278
R412014304
R412014230
R412014168
R412014258
R412014225
R412014305
R412014231
R412014170
R412014162
R412014279
R412014306
R412014232
R412014244
R412014259
R412014280
R412014307
R412014182
R412014216
R412014260
R412014281
R412014308
R412014233
R412014245
R412014261
R412014282
R412014309
R412014234
R412014246
R412014262
R412014283
R412014210
R412014235
R412014247
R412014263
R412014214
R412014219
R412014236
R412014248
R412014183
R412014284
R412014310
R412014237
R412013926
R412014264
R412014285
R412014206
R412014238
R412014249
R412014265
R412014286
R412014311
R412014327
R480605337
R412014328
R480605338
R412014329
R480605339
R412014330
R480605340
R412014331
R480605341
R412014332
R480605342
R412014333
R480605343
R412013911
R480605146
R412014334
R480605344
R412014335
R480605345
R412014336
R480605346
安沃馳AVENTICS型材氣缸ISO15552,系列PRA
R480144202
R480041108
R480147979
R480147990
R480144198
R480147959
R480147968
R480147980
R480147991
R480148001
R480040989
R480147969
R480147981
R480147992
R480148002
R480147960
R480147970
R480147982
R480147993
R480147611
R480147961
R480147971
R480147983
R480147994
R480148003
R480147962
R480147972
R480147984
R480147995
R480148004
R480147963
R480147973
R480147985
R480144714
R480147052
R480147964
R480147974
R480147986
R480147996
R480148005
R480147965
R480147975
R480147987
R480147997
R480146313
R480147966
R480147976
R480147988
R480147998
R480042946
R480147967
R480147977
R480147989
R480147999
R480148009
R480148011
R480170695
R480148012
R480157264
R480148013
R480163258
R480148014
R480153677
R480148015
R480155595
R480148016
R480170774
R480148017
R480165969
R480148018
R480158304
R480148019
R480170775
R480148020
R480170776
R480147194
R480149365
ISO15552，系列PRA-inch
安沃馳AVENTICS型材氣缸ISO15552,系列PRA-inch
R480176154
R480176238
R480176328
R480176417
R480176506
R480176162
R480176251
R480176334
R480176427
R480176510
R480176169
R480176257
R480176345
R480176437
R480176523
R480176174
R480176263
R480176354
R480176441
R480176526
R480176187
R480176275
R480176363
R480176452
R480176534
R480176190
R480176280
R480176370
R480176459
R480176546
R480176201
R480176293
R480176377
R480176464
R480176554
R480176209
R480176298
R480176383
R480176472
R480176561
R480176218
R480176304
R480176395
R480176480
R480176567
R480176228
R480176316
R480176400
R480176490
R480176581
R480176232
R480176321
R480176412
R480176500
R480176585
R480176593
R480176685
R480176601
R480176689
R480176609
R480176694
R480176614
R480176707
R480176626
R480176712
R480176633
R480176721
R480176641
R480176729
R480176646
R480176736
R480176660
R480176746
R480176665
R480176754
R480176676
R480176761
安沃馳AVENTICS型材氣缸ISO15552,系列PRA-inch
R480176152
R480176240
R480176332
R480176414
R480176507
R480176160
R480176248
R480176341
R480176423
R480176517
R480176173
R480176255
R480176348
R480176435
R480176519
R480176175
R480176267
R480176356
R480176440
R480176533
R480176182
R480176276
R480176359
R480176448
R480176535
R480176191
R480176283
R480176366
R480176454
R480176542
R480176204
R480176289
R480176378
R480176463
R480176555
R480176212
R480176300
R480176389
R480176477
R480176559
R480176214
R480176308
R480176391
R480176481
R480176573
R480176226
R480176313
R480176404
R480176489
R480176577
R480176236
R480176319
R480176408
R480176496
R480176582
R480176597
R480176680
R480176604
R480176693
R480176612
R480176700
R480176615
R480176706
R480176625
R480176715
R480176630
R480176724
R480176645
R480176726
R480176651
R480176740
R480176659
R480176749
R480176667
R480176750
R480176674
R480176762

AVENTICS緊湊型氣缸R422001413
