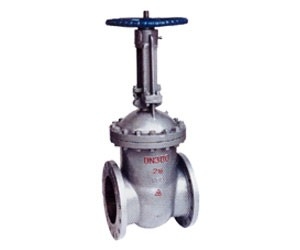

楔式閘閥

主要特點及用途 Chief features and usages 1、結構緊湊、設計合理，閥門剛性好，通道流暢，流阻系數小。 2、密封面采用不銹鋼和硬質合金，使用壽命長 3、采用柔性石墨填料、密封可靠、操作輕便靈活 4、驅動方式分手動、電動、氣動、齒輪傳功，結構型式：彈性楔式單閘板、剛性楔式單閘板和雙閘板型式。 5、廣泛適用于石油化工，火力發電廠等油品、水蒸汽管路上作接通或截斷管路中介質的啟閉裝置。 1、Compact structure,neasonnable design,good rigidity,smooth channel,small coefficient of flow resistance. 2、The sealing face uses stainless steel and carbide alloy and is of long duration 3、Using flexible graphite fillings,reliable sealing,light and nimble operation 4、Four driving ways,manually,electrically,air-ioerating and gear-driving,structure type,elastic wedge type with single gate board,right rigi-dwedge type with single or dual-gate board. 5、Widely used as the device of open or close to connect or cut off the medium inside of the pioeline of water,steam or oil goods in steam power plants 主要性能規范 Chief property and specification 試驗壓力Test pressure 公稱壓力PN(MPa) Nominal pressure 實驗壓力(MPa)Test pressure 殼體Shell 密封(液)Seal 密封(氣)Seal 上密封Back seal 1.6 2.4 1.8 0.6 1.8 2.5 3.8 2.8 0.6 2.8 4.0 6.0 4.4 0.6 4.4 6.4 9.6 7.0 0.6 7.0 10.0 15.0 11.0 0.6 11.0 16.0 24.0 18.0 0.6 18.0 適用范圍 Suitable scope 殼體材料Shell material 適用介質Applicable medium 適用溫度(℃)Applicable temperature 碳素鋼(C型)Carburizing steel 水、蒸汽、油品Water,steam,oil goods ≤425   硝酸類 Nitric acid ≤200   醋酸類 Acetic acid ≤200   水、蒸汽、油品Water,steam,oilgoods ≤550 主要零件材料Material for main parts 閥體、閥蓋Body,bonnet 閥板、閥座 Wedge disc,seat rign 閥桿 Stem 閥桿螺母 Yoke nut 填料 Packing 手輪 Hand wheel 碳素鋼 Carburizing steel 優質碳鋼+硬質合金或不銹鋼 High-grade carbon steel+carbide alloy or stainleel 鉻不銹鋼Cr.stainless steel 鋁青銅AI bronze 石墨石棉盤根Graphite,asbestos coils 可鍛鑄鐵 Foraeable cast-iron 鉻鎳鈦鋼Cr.Ni.Tisteel 不銹鋼、不銹鋼+硬質合金Stainless steel or +carbide alloy 鉻鎳鈦不銹鋼Cr.Ni.Ti stainless stee 鋁青銅AI bronze 浸聚四氟乙Dipping polyterafluo-roethylene 可鍛鑄鐵Foraeable cast-iron 鉻鎳鉬鈦鋼Cr.Ni.Mo.Tisteel 不銹鋼、不銹鋼+硬質合金Stainless steel or +carbide alloy 鉻鎳鉬鈦不銹鋼Cr.Ni.Mo.Ti stainless stee 鋁青銅AI bronze 烯石棉盤根Asbestos coil 可鍛鑄鐵Foraeable cast-iron 鉻鉬鋼Cr.Mo streel 合金鋼+硬質合金Alloy steel+carbide alloy 鉻鉬鋁鋼Cr.Mo.Ai steel 鋁青銅AI bronze 柔性石墨Flexibie graphite 可鍛鑄鐵Foraeable cast-iron 主要尺寸及重量Main dimensions and weight 公稱通徑Nominal diameter 主要外形尺寸和連接尺寸(mm)Dimensions 重量(kg)Weight L D D1 D2 D6 b f f2 z-d H H1 D0   Z40H -40 Z40 Y-40P Z40 Y-40R Z40 W-40P Z40 Y-40R Z40 Y-40 (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 20 150 105 75 55 51 16 2 4 4-14 256 285 140 8 25 160 115 85 65 58 16 2 4 4-14 275 305 160 9.3 32 180 135 100 78 66 18 2 4 4-18 287 322 180 12 40 200 145 110 85 76 18 3 4 4-18 323 369 200 16.5 50 250 160 125 100 88 20 3 4 4-18 372 440 280 29 65 280 180 145 120 110 22 3 4 8-18 395 473 280 39 80 310 195 160 135 121 22 3 4 8-18 457 552 320 52 100 350 230 190 160 150 24 3 4.5 8-23 552 671 360 80 125 400 270 220 188 176 28 3 4.5 8-25 634 726 400 127 150 450 300 250 218 204 30 3 4.5 8-25 708 883 400 154 200 550 375 320 282 260 38 3 4.5 12-30 858 1086 450 263 250 650 445 385 345 313 42 3 4.5 12-34 1015 1298 560 368 300 750 510 450 408 364 46 4 4.5 16-34 1203 1535 640 547 350 850 570 510 465 422 52 4 5 16-34 1341 1678 640 679 400 950 660 585 535 474 58 4 5 16-41 1492 1903 720 953   Z40H -64 Z40 Y-64P Z40 Y-64R Z40 W-64P Z40 Y-64R Z40 Y-64I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 20 190 125 90 68 51 20 2 4 4-18 258 288 180 8 25 210 135 100 78 58 22 2 4 4-18 310 341 200 12 32 230 150 110 82 66 24 2 4 4-φ23 320 353 200 25 40 240 165 125 95 76 24 3 4 4-φ23 360 389 240 29 50 250 175 135 105 88 26 3 4 4-φ23 372 448 280 34 65 280 200 160 130 110 28 3 4 8-φ23 395 475 280 43 80 310 210 170 140 121 30 3 4 8-φ23 458 553 320 60 100 350 250 200 168 150 32 3 4.5 8-φ25 553 679 360 89 125 400 295 240 202 176 36 3 4.5 8-φ30 638 779 400 140 150 450 340 280 240 204 38 3 4.5 8-φ34 718 893 450 207 200 550 405 345 300 260 44 3 4.5 12-φ34 873 1100 560 325 250 650 470 400 352 313 48 3 4.5 12-φ41 1053 1332 640 467 300 750 530 460 412 364 54 4 4.5 16-φ41 1203 1535 640 590   Z40H -100 Z40 Y-100P Z40 Y-100R Z40 W-100P Z40 Y-100R Z40 Y-100I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 25 210 135 100 78 58 24 2 4 4-18 310 341 200 12 32 230 150 110 82 66 24 2 4 4-18 320 353 240 20 40 240 165 125 95 76 26 3 4 4-23 360 389 280 51 50 250 195 145 112 88 28 3 4 4-23 490 558 360 60 65 280 220 170 138 110 32 3 4 8-25 540 622 400 70 80 310 230 180 148 121 34 3 4 8-25 573 671 400 89 100 350 265 210 172 150 38 3 4.5 8-30 575 671 400 130 125 400 310 250 210 176 42 3 4.5 8-34 744 892 560 223 150 450 350 290 250 204 46 3 4.5 12-34 800 972 560 295 200 550 430 360 312 260 54 3 4.5 12-41 800 972 560 559 250 650 500 430 382 313 60 3 4.5 12-41 1050 1305 640 640 300 750 585 500 442 364 70 4 4.5 16-48 1208 1506 640 730   Z40H -160 Z40 Y-160P Z40 Y-160R Z40 W-160P Z40 Y-160R Z40 Y-160I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 15 170 110 75 52 40 24 2 4 4-18 230 250 200 8 20 190 130 90 62 51 26 2 4 4-23 260 288 200 9 25 210 140 100 72 58 28 2 4 4-23 280 310 280 13 32 230 165 115 82 66 30 2 4 4-25 312 350 320 20 40 240 175 125 92 76 32 3 4 4-25 350 395 320 32 50 300 215 165 132 88 36 3 4 4-27 512 612 360 73 65 340 245 190 152 110 44 3 4 8-25 560 677 360 110 80 390 260 205 168 121 46 3 4 8-30 585 686 400 141 100 450 300 240 200 150 48 3 4.5 8-30 631 751 450 185 125 525 355 285 238 176 60 3 4.5 8-41 723 868 560 320 150 600 390 318 270 204 66 3 4.5 12-41 820 997 640 462 200 750 480 400 345 250 78 3 4.5 12-48 990 1224 720 711 主要尺寸及重量Main dimensions and weight 公稱通徑Nominal diameter 主要外形尺寸和連接尺寸(mm)Dimensions 重量(kg)Weight L D D1 D2 D6 b f f2 z-d H H1 D0   Z40H -40 Z40 Y-40P Z40 Y-40R Z40 W-40P Z40 Y-40R Z40 Y-40 (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 20 150 105 75 55 51 16 2 4 4-14 256 285 140 8 25 160 115 85 65 58 16 2 4 4-14 275 305 160 9.3 32 180 135 100 78 66 18 2 4 4-18 287 322 180 12 40 200 145 110 85 76 18 3 4 4-18 323 369 200 16.5 50 250 160 125 100 88 20 3 4 4-18 372 440 280 29 65 280 180 145 120 110 22 3 4 8-18 395 473 280 39 80 310 195 160 135 121 22 3 4 8-18 457 552 320 52 100 350 230 190 160 150 24 3 4.5 8-23 552 671 360 80 125 400 270 220 188 176 28 3 4.5 8-25 634 726 400 127 150 450 300 250 218 204 30 3 4.5 8-25 708 883 400 154 200 550 375 320 282 260 38 3 4.5 12-30 858 1086 450 263 250 650 445 385 345 313 42 3 4.5 12-34 1015 1298 560 368 300 750 510 450 408 364 46 4 4.5 16-34 1203 1535 640 547 350 850 570 510 465 422 52 4 5 16-34 1341 1678 640 679 400 950 660 585 535 474 58 4 5 16-41 1492 1903 720 953   Z40H -64 Z40 Y-64P Z40 Y-64R Z40 W-64P Z40 Y-64R Z40 Y-64I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 20 190 125 90 68 51 20 2 4 4-18 258 288 180 8 25 210 135 100 78 58 22 2 4 4-18 310 341 200 12 32 230 150 110 82 66 24 2 4 4-φ23 320 353 200 25 40 240 165 125 95 76 24 3 4 4-φ23 360 389 240 29 50 250 175 135 105 88 26 3 4 4-φ23 372 448 280 34 65 280 200 160 130 110 28 3 4 8-φ23 395 475 280 43 80 310 210 170 140 121 30 3 4 8-φ23 458 553 320 60 100 350 250 200 168 150 32 3 4.5 8-φ25 553 679 360 89 125 400 295 240 202 176 36 3 4.5 8-φ30 638 779 400 140 150 450 340 280 240 204 38 3 4.5 8-φ34 718 893 450 207 200 550 405 345 300 260 44 3 4.5 12-φ34 873 1100 560 325 250 650 470 400 352 313 48 3 4.5 12-φ41 1053 1332 640 467 300 750 530 460 412 364 54 4 4.5 16-φ41 1203 1535 640 590   Z40H -100 Z40 Y-100P Z40 Y-100R Z40 W-100P Z40 Y-100R Z40 Y-100I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 25 210 135 100 78 58 24 2 4 4-18 310 341 200 12 32 230 150 110 82 66 24 2 4 4-18 320 353 240 20 40 240 165 125 95 76 26 3 4 4-23 360 389 280 51 50 250 195 145 112 88 28 3 4 4-23 490 558 360 60 65 280 220 170 138 110 32 3 4 8-25 540 622 400 70 80 310 230 180 148 121 34 3 4 8-25 573 671 400 89 100 350 265 210 172 150 38 3 4.5 8-30 575 671 400 130 125 400 310 250 210 176 42 3 4.5 8-34 744 892 560 223 150 450 350 290 250 204 46 3 4.5 12-34 800 972 560 295 200 550 430 360 312 260 54 3 4.5 12-41 800 972 560 559 250 650 500 430 382 313 60 3 4.5 12-41 1050 1305 640 640 300 750 585 500 442 364 70 4 4.5 16-48 1208 1506 640 730   Z40H -1 60 Z40 Y-160P Z40 Y-160R Z40 W-160P Z40 Y-160R Z40 Y-160I (KZ41Y) Z41Y Z41 Z41 Z41 Z41 Z41 15 170 110 75 52 40 24 2 4 4-18 230 250 200 8 20 190 130 90 62 51 26 2 4 4-23 260 288 200 9 25 210 140 100 72 58 28 2 4 4-23 280 310 280 13 32 230 165 115 82 66 30 2 4 4-25 312 350 320 20 40 240 175 125 92 76 32 3 4 4-25 350 395 320 32 50 300 215 165 132 88 36 3 4 4-27 512 612 360 73 65 340 245 190 152 110 44 3 4 8-25 560 677 360 110 80 390 260 205 168 121 46 3 4 8-30 585 686 400 141 100 450 300 240 200 150 48 3 4.5 8-30 631 751 450 185 125 525 355 285 238 176 60 3 4.5 8-41 723 868 560 320 150 600 390 318 270 204 66 3 4.5 12-41 820 997 640 462 200 750 480 400 345 250 78 3 4.5 12-48 990 1224 720 711

楔式閘閥


本實用新型涉及一種閥門鑄造上模，它包括模組件，所述模組件包括模具本體、開設于所述模具本體上表面且向內凹陷的型腔、開設于所述模具本體兩個對應側面上的凹槽以及開設于所述模具本體另一側面上的第二凹槽；兩塊支撐板，每塊所述支撐板可拆卸地安裝在所述模具本體的側面上且與所述凹槽相對應；所述支撐板上表面開設有向內凹陷的支撐槽；第二支撐板，所述第二支撐板固定在所述模具本體的另一側面上，它的上表面開設有向內凹陷的對合凹槽；第三支撐板，所述第三支撐板固定在所述模具本體）的側面上且與所述第二支撐板相對設置。這樣利用模組件的多種凹槽并在凹槽處固定支撐板，這樣能夠緩沖冷熱溫差而導致的形變。
