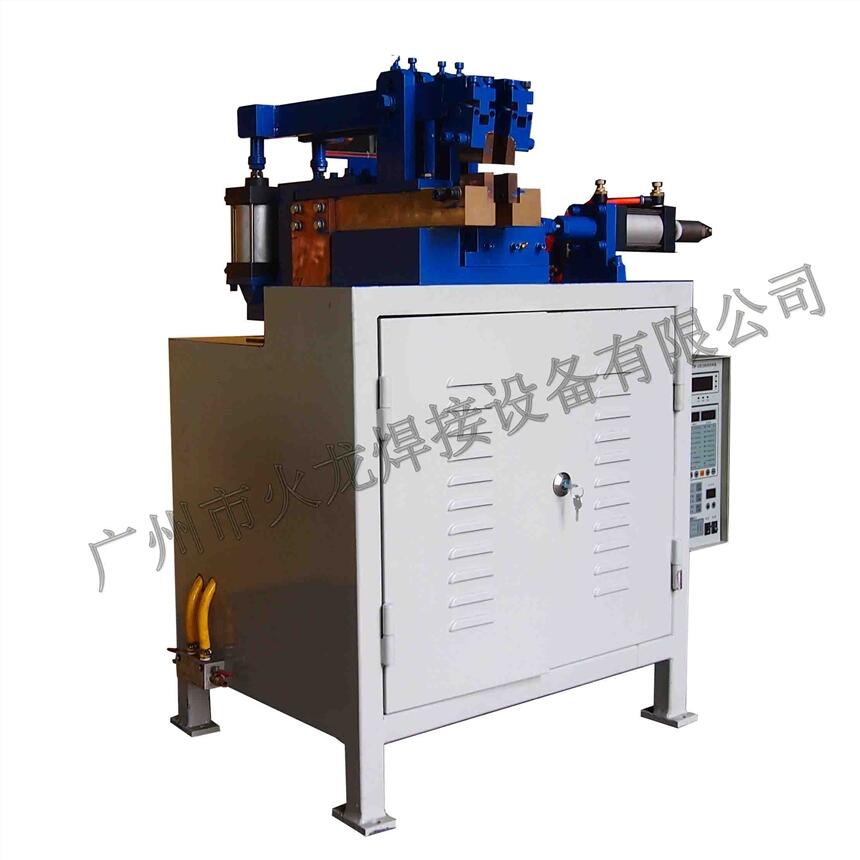

UN1系列電阻對焊機
整機特性：
1.電阻對焊是將兩工件端面始終壓緊，利用電阻熱將接觸部分加熱至塑性狀態，然后迅速施加頂鍛壓力或不加頂鍛壓力只保持焊接壓力，來完成焊接的方法；
2.同閃光對焊相比，電阻對焊操作簡單，價格實惠，焊接效率高；
3.焊接后接頭光滑，毛刺小；
4.結構設計精巧，對精細不一的工件焊接容易調整,專用的對焊機控制電路，確保焊接質量；
5.主要用于對焊截面積小于250mm的金屬型材，如鐵線、板料、管材等等。
Main features::
1.AC Resistance Butt Welding is the welding method that the end surfaces of two parts are pressed tightly,and the resistance heat is used to heat up the surfaces to the plasticized status,then the upsetting force quickly press them together more tight again or without applying the upsetting force pressure,just only hold on the welding pressure to complete the welding;
2.Compared to Flash Butt Welding,Resistance Welding is much easily to for worker use and operate,the cost is much lower,welding productivity is also higher;
3.The welded joint is smooth.and the welding burrs are small;
4. The structure is designed compactly which is very easily to be adjusted to weld different parts. The special butt welding control circuits ensure the welding quality;
5. Mainly used for butt welding various metal material with welding section area less than 250mm,such as iron,wires,steel sheet,pipes,etc.
主要技術參數：
Main Technical Parameters:
|
參數 Parameter |
額定容量 Rated Capacity |
額定電壓 Rated Input Voltage |
額定頻率 Rated Frequency |
最大短路電流 Max Short Current |
占載率 Rated Duty Cycle |
最大夾緊力 Max Clamping Force |
最大頂鍛力 Max Upsetting Force |
冷卻水流量 Cooling Water Required |
外形尺寸Dimensions L*W*H |
平均重量Arage Weight |
|
型號 Model No. |
||||||||||
|
UN1-25 |
25KVA |
380V |
50/60Hz |
11000A
|
50% |
3900N |
1500N |
150L/H |
90*80*120CM |
300Kg
|
|
UN1-35 |
35KVA |
380V |
50/60Hz |
15000A
|
50% |
3900N |
1500N |
150L/H |
90*80*120CM |
350Kg
|
|
UN1-50 |
50KVA |
380V |
50/60Hz |
19000A
|
50% |
3900N |
1500N |
150L/H |
90*80*120CM |
400Kg
|
|
UN1-75 |
75KVA |
380V |
50/60Hz |
23500A
|
50% |
6100N |
2500N |
200L/H |
90*80*120CM |
450Kg
|
|
UN1-100 |
100KVA |
380V |
50/60Hz |
26000A
|
50% |
6100N |
2500N |
200L/H |
90*80*120CM |
500Kg
|
|
UN1-150 |
150KVA |
380V |
50/60Hz |
31000A
|
50% |
8000N |
3900N |
300L/H |
135*80*160CM |
550Kg
|
|
UN1-200 |
200KVA |
380V |
50/60Hz |
35000A
|
50% |
8000N |
3900N |
300L/H |
135*80*160CM |
650Kg |
