三菱PLC A系列報價

MODEL DESCRIPTION UNIT PRICE
-[CPU]
A1SHCPU  CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256  4,010
A2SHCPU  CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 512  5,840
A2SHCPU-S1  CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 1024  6,420
A2ASCPU  CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 512, 0.2us/STEP  7,820
A2ASCPU-S1  CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 1024, 0.2us/STEP  9,390
A2USHCPU-S1  CPU, BUILT IN 30KSTEPS RAM, MAX. I/O 1024, 0.09us/STEP  9,390
A2ASCPU-S60  CPU, BUILT IN 30KSTEPS RAM, MAX. I/O 1024, 0.15us/STEP  20,140
A1SCPUC24-R2  CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, RS232 PORT  7,730
A1SJHCPU  CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, 5 I/O SLOTS  3,940
A1SJHCPU-S8  CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, 8 I/O SLOTS  4,460
-[BASE UNIT & EXTENSION UNITS]
A1S32B  BASE UNIT: CPU, 2 I/O & POWER SUPPLY SLOTS  1,000
A1S33B  BASE UNIT: CPU, 3 I/O & POWER SUPPLY SLOTS  1,080
A1S35B  BASE UNIT: CPU, 5 I/O & POWER SUPPLY SLOTS  1,100
A1S38B  BASE UNIT: CPU, 8 I/O & POWER SUPPLY SLOTS  1,660
A1S52B-S1  EXTENSION UNIT : 2 I/O SLOTS  950
A1S55B-S1  EXTENSION UNIT : 5 I/O SLOTS  1,060
A1S58B-S1  EXTENSION UNIT : 8 I/O SLOTS  1,560
A1S65B-S1  EXTENSION UNIT : 5 I/O, POWER SUPPLY SLOTS  1,170
A1S68B-S1  EXTENSION UNIT : 8 I/O, POWER SUPPLY SLOTS  1,720
-[MEMORY CASSETTE]
A1SNMCA-8KP  MEMORY CASSETTE : 8K STEP EPROM  860
A1SNMCA-2KE  MEMORY CASSETTE : 2K STEP EEPROM  1,020
A1SNMCA-8KE  MEMORY CASSETTE : 8K STEP EEPROM  2,030
A2SMCA-14KP  MEMORY CASSETTE : 14K STEP EPROM  1,170
A2SNMCA-30KE  MEMORY CASSETTE : 30K STEP EERPOM  2,180
A2SMCA-30KP  MEMORY CASSETTE : 30K STEP EPROM  1,540
A2SMCA-60KE  MEMORY CASSETTE : 60K STEP EEPROM  3,080
-[POWER SUPPLY]
A1S61PN  INPUT : AC 100 - 240VAC OUTPUT : DC 5V 8A 1,560
A1S62PN  INPUT : AC 100 - 220VAC OUTPUT : DC 5V 5A, DC 24V 0.8A 1,790
A1S63P  INPUT : DC 24V OUTPUT : DC 5V 8A 2,710
-[BLANK AND DUMMY I/O MODULES]
A1SG60  BLANK COVER  160
A1SG62  DUMMY I/O MODULE, 16/32/64 SELECTABLE  1,140
-[INPUT UNIT]
A1SX10  16 PT. AC 100V  1,560
A1SX20  16 PT. AC 200V  2,100
A1SX30  16 PT. AC 24V OR DC 24V  1,520
A1SX40  16 PT. DC 12/24V, SINK INPUT  1,480
A1SX40-S1  16 PT. DC 24V, SINK INPUT, FAST RESPONSE  1,560
A1SX40-S2  16 PT. DC 24V, SINK INPUT  1,480
A1SX41  32 PT. DC 12/24V, SINK INPUT  2,560
A1SX41-S1  32 PT. DC 24V, SINK INPUT, FAST RESPONSE  2,870
A1SX41-S2  32 PT. DC 24V, SINK INPUT  2,560
A1SX42  64 PT. DC 12/24V, SINK INPUT  4,120
A1SX42-S1  64 PT. DC 24V, SINK INPUT, FAST RESPONSE  4,620
A1SX42-S2  64 PT. DC 24V, SINK INPUT  4,120
A1S42X  64 PT. DYNAMIC INPUT  3,050
A1SX71  32 PT. DC 5/12V, SINK/SOURCE INPUT  2,790
A1SX80  16 PT. DC 12/24V, SINK/SOURCE INPUT  1,880
A1SX80-S1  16 PT. DC 24V, SINK/SOURCE IN (HIGH SPEED)  1,880
A1SX80-S2  16 PT. DC 24V, SINK/SOURCE INPUT  1,880
A1SX81  32 PT. DC 12/24V, SINK/SOURCE INPUT  3,190
A1SX81-S2  32 PT. DC 24V, SINK/SOURCE INPUT  3,190
A1SX10EU  16 PTS. AC 100V, EN/IEC STANDARD  1,750
A1SX20EU  16 PTS. AC 200V, EN/IEC STANDARD  2,210
-[OUTPUT UNIT]
A1SY10  16 PT. AC 240V/DC 24V, 2A, RELAY  2,030
A1SY18A  8 PT. AC 240V/DC 24V 2A, RELAY, INDEPENDENT COMMON  1,880
A1SY22  16 PT. AC 240V 0.6A, TRIAC/SSR  2,490
A1SY28A  8 PT. AC 24V 1A, TRIAC/SSR, INDEPENDENT COMMON  2,180
A1SY40  16 PT. DC 12/24V 0.1A, TRANSISTOR SINK  1,480
A1SY41  32 PT. DC 12/24V 0.1A, TRANSISTOR SINK  2,560
A1SY42  64 PT. DC 12/24V 0.1A, TRANSISTOR SINK  4,120
A1SY50  16 PT. DC 12/24V 0.5A, TRANSISTOR SINK  1,560
A1SY60  16 PT. DC 24V 2A, TRANSISTOR SINK  3,100
A1SY68A  8 PT. DC 5/12/24/48V 2A, TRANSISTOR SINK/SOURCE  2,180
A1SY71  32 PT. DC 5/12V 16mA, TRANSISTOR SINK  2,560
A1SY80  16 PT. DC 12/24V 16mA, TRANSISTOR SOURCE  2,030
A1SY81  32 PT. DC 12/24V 0.1A, TRANSISTOR SOURCE  3,510
A1SY10EU  16 PT. AC 240V/DC 24V 2A, RELAY, EN/IEC STANDARD  2,210
A1SY14EU  12 PT. AC 240V/DC 24V 2A, RELAY, EN/IEC STANDARD  2,210
A1SY18AEU  8 PT. AC 240VDC 24V 2A, RELAY, EN/IEC STANDARD  1,980
A1SY28EU  8 PT. AC 240V 1A, TRIAC/SSR, EN/IEC STANDARD  2,420
A1SH42  DC 12/24V : 32 PT. SINK INPUT ; 32 PT. SINK TRANSISTOR OUTPUT  4,120
A1SX48Y18  8 PT. DC 12/24V SINK INPUT ; 8 PT. RELAY OUTPUT  1,960
A1SX48Y58  8 PT. DC 12/24V SINK INPUT ; 8 PT. SINK TRANSISTOR OUTPUT  1,320
-[ANALOG UNIT]
A1S63ADA  A/D, D/A CONVERTER : 2 INPUT/1 OUTPUT, 4-20mA, OR -10V-+10V  4,690
A1S66ADA  A/D, D/A CONVERTER : 4 INPUT/2 OUTPUT, 4-20mA, OR -10V-+10V  8,160
A1S64AD  A/D CONVERTER : 4 CH., 4-20mA, OR -10V-+10V  4,240
A1S68AD  A/D CONVERTER : 8 CH., 0-20mA, OR -10V-+10V  6,480
A1S62DA  D/A CONVERTER : 2 CH., 4-20mA, OR -10V-+10V  4,990
A1S68DAI  D/A CONVERTER UNIT : 8 CH., 4-20mA  8,430
A1S68DAV D/A CONVERTER UNIT : 8 CH., -10V-+10V  8,430
A1ST60  8 ANALOG TIMERS  2,180
-[TEMPERATURE CONTROL UNIT]
A1S68TD  THERMOCOUPLE INPUT : 8 CH., B, R, S, E, J, K TYPE  12,110
A1S62RD3N  TEMPERATURE SENSOR : PT-100, 3 WIRES  5,940
A1S62RD4N  TEMPERATURE SENSOR : PT-100, 4 WIRES  5,940
A1S64TCTT-S1  THERMOCOUPLE R,K,J,T,I/P,TRANSISTOR O/P, 4 CHANNEL  8,020
A1S64TCTTBW-S1  3-WIRE PT-100 I/P, TRANSISTOR O/P, 4 CHANNELS  10,430
A1S64TCRT-S1  THERMOCOUPLE R,K,J,T,I/P,TRANSISTOR O/P, 4 CHANNEL  8,020
A1S64TCRTBW-S1  3-WIRE PT-100 I/P, TRANSISTOR O/P, 4 CHANNELS  10,430
-[POSITIONING UNIT]
A1SD70  1 AXES, VOLTAGE OUTPUT  7,820
A1SD71-S2  2 AXIS, PULSE TRAIN, OUTPUT, SPEED CONTROL FUNCTION  13,980
A1SD71-S6  2 AXIS, PULSE TRAIN OUTPUT  14,530
A1SD71-S7  2 AXIS, PULSE TRAIN OUTPUT, MANUAL PULSAR INPUT  13,980
A1SD75P1-S3  1 AXES, PULSE TRAIN OUTPUT  7,270
A1SD75P2-S3  2 AXIS, PULSE TRAIN OUTPUT  11,000
A1SD75P3-S3  3 AXIS, PULSE TRAIN OUTPUT  15,420
A1SD75-C01H  CONNECTION CABLE BETWEEN A1SD75 & AD75TU  880
A1SP60  PULSE CATCH MODULE  2,330
A1SD75M1  SSC NET, 1ASIS  6,830
A1SD75M2  SSC NET, 2ASIS  10,430
A1SD75M3  SSC NET, 3ASIS  14,450
AD75TU  AD75 TEACHING PANEL  7,550
-[OTHER SPECIAL FUNCTION UNIT]
A1SD61  HIGH SPEED COUNTER, 1 CH., 50KPPS  6,210
A1SD62  HIGH SPEED COUNTER, 2 CH., 100KPPS, SINK  6,380
A1SD62E  HIGH SPEED COUNTER, 2 CH., 100KPPS, SOURCE  6,380

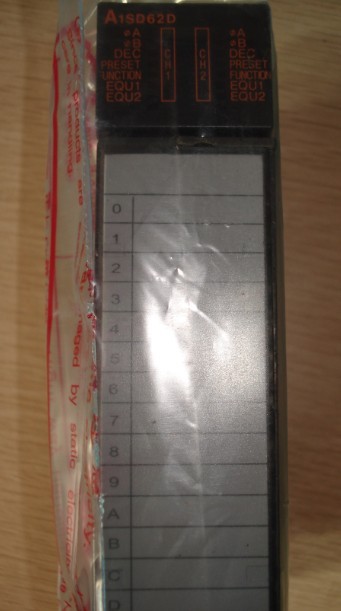

A1SD62D  HIGH SPEED COUNTER, 2 CH., 200KPPS, SINK  6,830
A1SI61  16 PT. INTERRUPT MODULE  3,100
-[MELESEC I/O LINK UNIT]
A1SJ51T64  MELSECNET I/O LINK MASTER, 64 REMOTE I/O CONTROL  1,940
AJ55TB3-4D  REMOTE INPUT, 4 PTS, DC24V  1,700
AJ55TB3-8D  REMOTE INPUT, 8 PTS, DC24V  1,940
AJ55TB3-16D  REMOTE INPUT, 16 PTS, DC24V  2,870
AJ55TB2-4T  REMOTE OUTPUT, 4 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT.  1,790
AJ55TB2-8T  REMOTE OUTPUT, 8 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT.  2,010
AJ55TB2-16T  REMOTE OUTPUT, 16 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT.  2,870
AJ55TB2-4R  REMOTE OUTPUT, 4 PTS, RELAY, AC240V 2A/PT.  1,850
AJ55TB2-8R  REMOTE OUTPUT, 8 PTS, RELAY, AC240V 2A/PT.  2,160
AJ55TB2-16R  REMOTE OUTPUT, 16 PTS, RELAY, AC240V 2A/PT.  3,530
AJ55TB32-4DT  INPUT 2 PTS, DC24V / OUTPUT 2 PTS, TRAN.(SINK) DC24V 0.5A/PT.  1,850
AJ55TB32-8DT  INPUT 4 PTS, DC24V / OUTPUT 4 PTS, TRAN.(SINK) DC24V 0.5A/PT.  1,940
AJ55TB32-16DT  INPUT 8 PTS, DC24V / OUTPUT 8 PTS, TRAN.(SINK) DC24V 0.5A/PT.  2,870
AJ55TB32-4DR  INPUT 2 PTS, DC24V / OUTPUT 2 PTS, RELAY AC240V 2A/PT.  1,790
AJ55TB32-8DR  INPUT 4 PTS, DC24V / OUTPUT 4 PTS, RELAY AC240V 2A/PT.  2,010
AJ55TB32-16DR  INPUT 8 PTS, DC24V / OUTPUT 8 PTS, RELAY AC240V 2A/PT.  3,080
-[DEVELOPMENT TOOLS]
A6WA-28P  READ/WRITE ADAPTER FOR A1SMCA-8KP  420
A2SWA-28P  READ/WRITE ADAPTER FOR A2SMCA-14KP  620
A7PUS  HANDY PROGRAMMER FOR AnS  5,260
AC30R4-PUS  A7PU CABLE, 3 M LONG  1,660
A6BAT  BATTERY FOR MEMORY BACKUP  340
-[EXTENSION CABLE]
A1SC01B  55 mm EXTENSION CABLE  360
A1SC03B  300 mm EXTENSION CABLE  420
A1SC60B  6 M EXTENSION CABLE  2,140
A1SC05NB  450 mm CABLE CONNECTS TO AnN EXTENSION BASE & GOT  660
A1SC07NB  700 mm CABLE CONNECTS TO AnN EXTENSION BASE & GOT  780
A1SC30NB  3 M CABLE CONNECTS TO AnN EXTENSION BASE & GOT  1,980
A1SC50NB  5 M CABLE CONNECTS TO AnN EXTENSION BASE & GOT  2,650
-[TERMINAL UNIT]
A6TE2-16SRN  16 PTS, RELAY OUTPUT UNIT, APPLICABLE TO A1SY41/42  1,620
AC06TE  0.6 M CABLE FOR A6TE2-16SR  460
AC10TE  1 M CABLE FOR A6TE2-16SR  440
AC30TE  3 M CABLE FOR A6TE2-16SR  660
AC50TE  5 M CABLE FOR A6TE2-16SR  660
AC100TE  10 M CABLE FOR A6TE2-16SR  1,100
-[TERMINAL ADAPTER]
A1STA32  32 PTS, AWG 20 (0.5mm2), FOR A1SX41/42-S2/71, A1SY41/71  560
A1STA32-3  32 PTS, AWG 22 (0.3mm2), FOR A1SX41/42-S2/71, A1SY41/71  560
A1STA32-7  32 PTS, AWG 18 (0.7mm2), FOR A1SX41/42-S2/71, A1SY41/71  560
-[CONNECTOR/TERMINAL CONVERTER]
A6TBXY36  36 PTS, SINK, APPLICABLE TO A1SX41/42 & A1SY41/42  580
A6TBXY54  54 PTS, SINK, APPLICABLE TO A1SX41/42 & A1SY41/42  750
A6TBX70  70 PTS, SINK INPUT, APPLICABLE TO A1SX41/42  890
A6TBX36-E  36 PTS, SOURCE INPUT, APPLICABLE TO A1SX81  580
A6TBY36-E  36 PTS, SOURCE OUTPUT, APPLICABLE TO A1SY81  580
A6TBX54-E  54 PTS, SOURCE INPUT, APPLICABLE TO A1SX81  750
A6TBY54-E  54 PTS, SOURCE OUTPUT, APPLICABLE TO A1SY81  750
A6TBX70-E  70 PTS, SOURCE INPUT, APPLICABLE TO A1SX81  890
AC05TB  0.5 M CABLE, SINK TYPE, APPLICABLE TO A6TB( )  500
AC10TB  1 M CABLE, SINK TYPE, APPLICABLE TO A6TB( )  530
AC20TB  2 M CABLE, SINK TYPE, APPLICABLE TO A6TB( )  580
AC30TB  3 M CABLE, SINK TYPE, APPLICABLE TO A6TB( )  640
AC50TB  5 M CABLE, SINK TYPE, APPLICABLE TO A6TB( )  750
