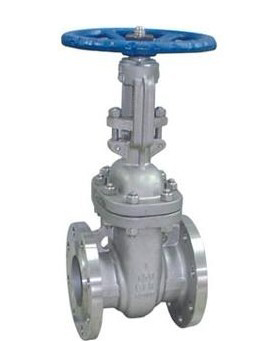

電動 氣動 傘齒輪 美標不銹鋼閘閥>Z41W-150LBP美標不銹鋼法蘭閘閥>Z41W-300LB不銹鋼美標閘閥
美標不銹鋼閘閥>Z41W-150LBP美標不銹鋼法蘭閘閥>Z41W-300LB不銹鋼美標閘閥產品特征
公稱壓力：150～600Lb
適用溫度范圍：≤200℃～≤350℃
適用介質：硝酸類、醋酸類、水、油、氣類及某些腐蝕性液體。
主要連接尺寸
型號
|
規格
|
尺寸(mm)
|
||||||||
inch
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
z-Φd
|
H
|
D0
|
|
Z41W-150Lb
|
1/2"
|
15
|
108
|
89
|
60.5
|
35
|
12
|
4-Φ15
|
155
|
120
|
3/4"
|
20
|
117
|
98
|
70
|
43
|
12
|
4-Φ15
|
160
|
120
|
|
1"
|
25
|
127
|
108
|
79.5
|
51
|
12
|
4-Φ15
|
200
|
140
|
|
11/4"
|
32
|
140
|
117
|
89
|
64
|
13
|
4-Φ15
|
245
|
160
|
|
11/2"
|
40
|
165
|
127
|
98.5
|
73
|
15
|
4-Φ15
|
285
|
180
|
|
2"
|
50
|
178
|
152
|
120.5
|
92
|
16
|
4-Φ19
|
315
|
200
|
|
21/2"
|
65
|
190
|
178
|
139.5
|
105
|
18
|
4-Φ19
|
375
|
220
|
|
3"
|
80
|
203
|
190
|
152.5
|
127 |
19
|
4-Φ19
|
400
|
240
|
|
4"
|
100
|
229
|
229
|
190.5
|
157
|
24
|
8-Φ19
|
460
|
280
|
|
5"
|
125
|
254
|
254
|
216
|
186
|
24
|
8-Φ22
|
540
|
300
|
|
6"
|
150
|
267
|
279
|
241.5
|
216
|
26
|
8-Φ22
|
620
|
320
|
|
8"
|
200
|
292
|
343
|
298.5
|
270
|
29
|
8-Φ22
|
800
|
400
|
|
10"
|
250
|
330
|
406
|
362
|
324
|
31
|
12-Φ25
|
850
|
450
|
|
12"
|
300
|
356
|
483
|
432
|
381
|
32
|
12-Φ25
|
1000
|
500
|
|
14"
|
350
|
381
|
533
|
476
|
413
|
35
|
12-Φ29
|
1300
|
600
|
|
16"
|
400
|
406
|
597
|
540
|
470
|
37
|
16-Φ29
|
1400
|
600
|
|
18"
|
450
|
432
|
635
|
578
|
533
|
40
|
16-Φ32
|
1600
|
650
|
|
20"
|
500
|
457
|
698
|
635
|
584
|
43
|
20-Φ32
|
1850
|
650
|
|
24"
|
600
|
508
|
813
|
749.5
|
692
|
48
|
20-Φ35
|
2200
|
700
|
|
美標不銹鋼閘閥>Z41W-150LBP美標不銹鋼法蘭閘閥>Z41W-300LB不銹鋼美標閘閥主要連接尺寸
型號
|
規格
|
尺寸(mm)
|
||||||||
inch
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
z-Φd
|
H
|
D0
|
|
Z41W-300Lb
|
1/2"
|
15
|
140
|
95
|
66.5
|
35
|
15
|
4-Φ15
|
155
|
120
|
3/4"
|
20
|
152
|
117
|
82.5
|
43
|
16
|
4-Φ19
|
160
|
120
|
|
1"
|
25
|
165
|
124
|
89
|
51
|
18
|
4-Φ19
|
200
|
140
|
|
11/4"
|
32
|
178
|
133
|
98.5
|
64
|
19
|
4-Φ19
|
250
|
160
|
|
11/2"
|
40
|
190
|
156
|
114.5
|
73
|
21
|
4-Φ22
|
290
|
180
|
|
2"
|
50
|
216
|
165
|
127
|
92
|
22
|
8-Φ19
|
330
|
220
|
|
21/2"
|
65
|
241
|
190
|
149
|
105
|
25
|
8-Φ22
|
385
|
250
|
|
3"
|
80
|
283
|
210
|
168.5
|
127
|
29
|
8-Φ22
|
410
|
280
|
|
4"
|
100
|
305
|
254
|
200
|
157
|
32
|
8-Φ22
|
480
|
300
|
|
5"
|
125
|
381
|
279
|
235
|
186
|
35
|
8-Φ22
|
630
|
350
|
|
6"
|
150
|
403
|
318
|
270
|
216
|
37
|
12-Φ22
|
690
|
350
|
|
8"
|
200
|
419
|
381
|
330
|
270
|
41
|
12-Φ25
|
830
|
450
|
|
10"
|
250
|
457
|
445
|
387.5
|
324
|
48
|
16-Φ29
|
1003
|
500
|
|
12"
|
300
|
502
|
521
|
451
|
381
|
51
|
16-Φ32
|
1137
|
600
|
|
14"
|
350
|
762
|
584
|
514.5
|
413
|
54
|
20-Φ32
|
1489
|
750
|
|
16"
|
400
|
838
|
648
|
571.5
|
470
|
57
|
20-Φ35
|
1581
|
800
|
|
18"
|
450
|
914
|
711
|
628.5
|
533
|
60
|
24-Φ35
|
2017
|
850
|
|
20"
|
500
|
991
|
775
|
686
|
584
|
64
|
24-Φ35
|
2228
|
900
|
|
24"
|
600
|
1143
|
914
|
813
|
692
|
70
|
24-Φ41
|
2650
|
950
|
|
