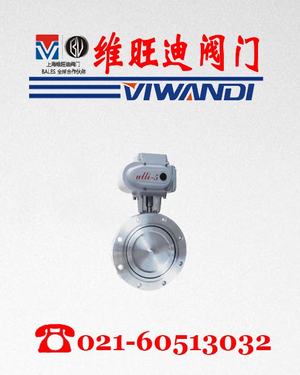

GI high vacuum butterfly valve is used to put through or cut off the airflow in vacuum pipeline. Applicable medium can be pure air and noncorrosive gases.
■
主要技術性能 Main Technical Performance
■
■
■
適用范圍：Applicability
105～1.3×10-4Pa
閥門漏率：Valve Leak Rate
≤1.3×10-4Pa.L/S.
適用溫度：Applicable Temperature
-25～+80℃(丁腈橡膠) -30～+150℃(氟橡膠)
安裝方向：Mounting Direction
任意
■
主要零件材料 Materials of Main Parts
■
■
閥體、閥蓋、閥桿：碳鋼或不銹鋼 密封件：丁腈橡膠、氟橡膠。
Body, bonnet and stem: carbon steel or stainless steel Sealing element: NBR, Viton
CONSTRUCTION FIGHTS(mm)
■
外形及連接尺寸(mm)(JB919) Overall and Connection Dimensions(mm)
