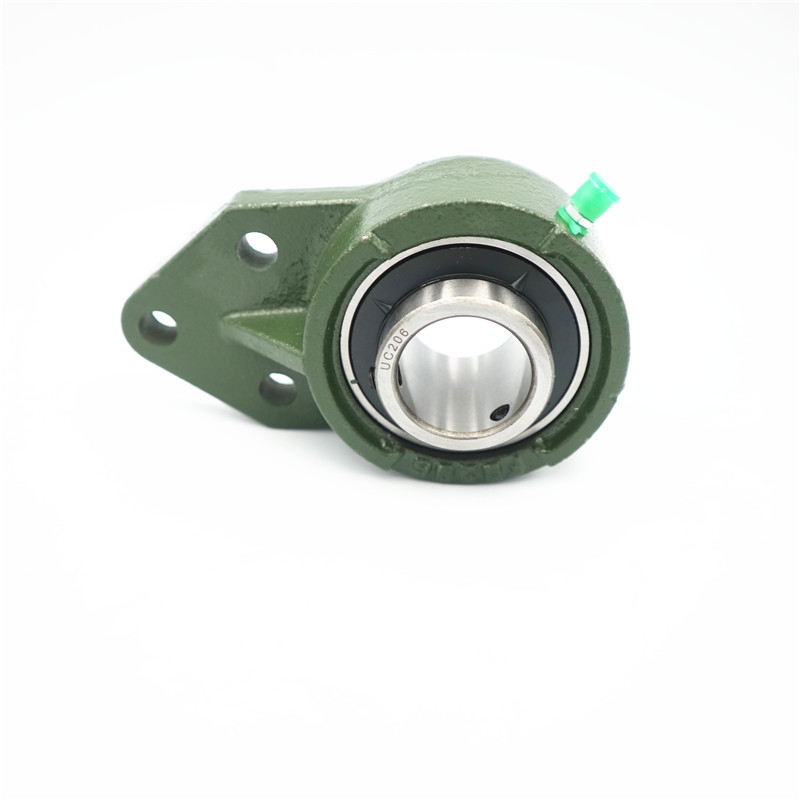

產品類型：帶座外球面軸承
軸承型號：UCFB207
內徑(d):35mm
外徑(a):156mm
寬度（z):46.4mm
重量:0.75KG
硬度:59-62HRC
材質：軸承鋼，GCR15
外觀：精美，光亮，無劃痕，無磕碰傷
包裝：工業包裝或單個彩盒包裝
防銹：防銹質保二年
產品特點：運行速度快、易安裝、高精度、壽命長
用途:用于農業機械、運輸系統或建筑機械。
臨清市普菲軸承有限公司，現貨型號如下：
UCFB201      UCFB201-8
UCFB202      UCFB202-9        UCFB202-10
UCFB203      UCFB203-11
UCFB204      UCFB204-12
UCFB205      UCFB205-13       UCFB205-14      UCFB205-15       UCFB205-16
UCFB206      UCFB206-17       UCFB206-18      UCFB206-19       UCFB206-20
UCFB207      UCFB207-20       UCFB207-21      UCFB207-22       UCFB207-23
UCFB208      UCFB208-24       UCFB208-25
UCFB209      UCFB209-26       UCFB209-27      UCFB209-28
UCFB210      UCFB210-29       UCFB210-30      UCFB210-31       UCFB210-32
如果您有需要的型號，歡迎隨時詢價。

Unit No.	Shaft Dia d		Dimensions(mm)													Bolt Used		Bearing No.	Housing No.	Housing Weight (kg)
	(in)	(mm)	a	h	e	j	i	g	l	s	b	f	z	Bi	n	mm	in
UCFB201-8	1/2		108	42.9	38.1	22	15.9	8	25.4	10	63.5	60.3	34.1	31	12.7	M8	5/16	UC201-8	FB204	0.38
UCFB202-9	9/16																	UC202-9
UCFB202-10	5/8																	UC202-10
UCFB203-11	11/16																	UC203-11
UCFB204-12	3/4																	UC204-12
UCFB201		12																UC201
UCFB202		15																UC202
UCFB203		17																UC203
UCFB204		20																UC204
UCFB205-13	13/16		121	46	41.3	28.5	16.7	9.5	28.5	10	70	63.5	36.5	34	14.3	M8	5/16	UC205-13	FB205	0.49
UCFB205-14	7/8																	UC205-14
UCFB205-15	15/16																	UC205-15
UCFB205-16	1																	UC205-16
UCFB205		25																UC205
UCFB206-17	1-1/16		137	52.4	47.6	31.7	18.6	9.5	32	10	83	70	40.9	38.1	15.9	M8	5/16	UC206-17	FB206	0.61
UCFB206-18	1-1/8																	UC206-18
UCFB206-19	1-3/16																	UC206-19
UCFB206-20	1-1/4																	UC206-20
UCFB206		30																UC206
UCFB207-20	1-1/4		156	60.3	50.8	31.7	21	12.7	36.5	13	95	83	46.4	42.9	17.5	M10	3/8	UC207-20	FB207	0.75
UCFB207-21	1-5/16																	UC207-21
UCFB207-22	1-3/8																	UC207-22
UCFB207-23	1-7/16																	UC207-23
UCFB207		35																UC207
UCFB208-24	1-1/2		164	60.3	50	41.3	21	15.9	35.7	12	100	78	51.2	49.2	19	M10	3/8	UC208-24	FB208	0.8
UCFB208-25	1-9/16																	UC208-25
UCFB208		40																UC208
UCFB209-26	1-5/8		174	65	54	42.9	21.8	18.3	38	12	106	80	51.2	49.2	19	M10	3/8	UC209-26	FB209	1.5
UCFB209-27	1-11/16																	UC209-27
UCFB209-28	1-3/4																	UC209-28
UCFB209		45																UC209
UCFB210-29	1-13/16		190	74.6	70	41.3	21.8	12.7	38	13	118	102	53.6	51.6	19	M10	3/8	UC210-29	FB210	1.8
UCFB210-30	1-7/8																	UC210-30
UCFB210-31	1-15/16																	UC210-31
UCFB210-32	2																	UC210-32
UCFB210		50																UC210
