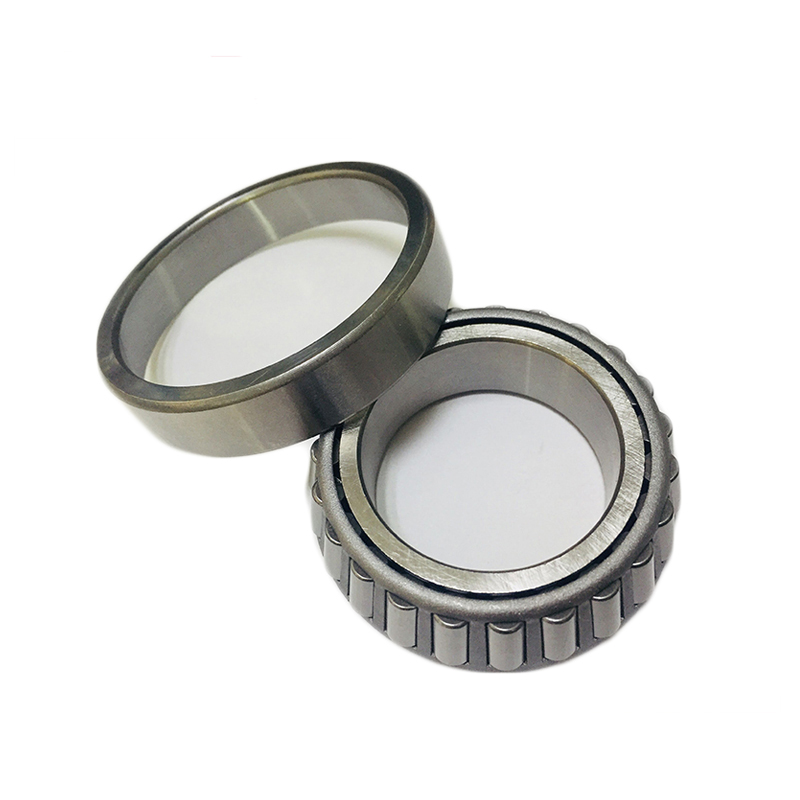

產品全檢。內套和外套可以互換使用，按您要求來做包裝，如有需要，歡迎隨時詢價！
| Bearing No. | Dimension(mm) | Basic Load rating(KN) | Weight | |||||||
| d | D | T | B | C | R | r | Cr | Cor | (kg) | |
| 32200 Series | ||||||||||
| 32203 | 17 | 40 | 17.25 | 16S | 14 | 1 | 1 | 27.4 | 27.5 | 0.105 |
| 32204 | 20 | 47 | 19.25 | 18 | 15 | 1 | 1 | 33.1 | 34.7 | 0.166 |
| 322/22 | 22 | 50 | 19.25 | 18 | 15 | 1 | 1 | 0.18 | ||
| 32205 | 25 | 52 | 19.25 | 18 | 16 | 1 | 1 | 39.8 | 44.8 | 0.187 |
| 322/28 | 28 | 58 | 20.25 | 19 | 16 | 1 | 1 | 0.243 | ||
| 32206 | 30 | 62 | 21.25 | 20 | 17 | 1 | 1 | 50.7 | 57.9 | 0.287 |
| 322/32 | 32 | 65 | 22.25 | 21 | 18 | 1 | 1 | 0.336 | ||
| 32207 | 35 | 72 | 24.25 | 23 | 19 | 1.5 | 1.5 | 69.6 | 82.4 | 0.445 |
| 32208 | 40 | 80 | 24.75 | 23 | 19 | 1.5 | 1.5 | 77.7 | 90.8 | 0.532 |
| 32209 | 45 | 85 | 24.75 | 23 | 19 | 1.5 | 1.5 | 84.2 | 104 | 0.573 |
| 32210 | 50 | 90 | 24.75 | 23 | 19 | 1.5 | 1.5 | 85 | 105 | 0.626 |
| 32211 | 55 | 100 | 26.75 | 25 | 21 | 2 | 1.5 | 107 | 133 | 0.853 |
| 32212 | 60 | 110 | 29.75 | 28 | 24 | 2 | 1.5 | 132.8 | 179.6 | 1.17 |
| 32213 | 65 | 120 | 32.75 | 31 | 27 | 2 | 1.5 | 160.9 | 221.7 | 1.55 |
| 32214 | 70 | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 168.5 | 237.1 | 1.66 |
| 32215 | 75 | 130 | 33.25 | 31 | 27 | 2 | 1.5 | 170.3 | 242.1 | 1.72 |
| 32216 | 80 | 140 | 35.25 | 33 | 28 | 2.5 | 2 | 198.1 | 279 | 2.1 |
| 32217 | 85 | 150 | 38.5 | 36 | 30 | 2.5 | 2 | 226.7 | 324 | 2.64 |
| 32218 | 90 | 160 | 42.5 | 40 | 34 | 2.5 | 2 | 269 | 396 | 3.41 |
| 32219 | 95 | 170 | 45.5 | 43 | 37 | 3 | 2.5 | 301 | 301 | 4.22 |
| 32220 | 100 | 180 | 49 | 46 | 39 | 2 | 2.5 | 340 | 513 | 5.05 |
| 32221 | 105 | 190 | 53 | 50 | 43 | 3 | 2.5 | 380 | 581 | 6.26 |
| 32222 | 110 | 200 | 56 | 53 | 46 | 3.5 | 2 | 430 | 668 | 7.35 |
| 32224 | 120 | 215 | 61.5 | 58 | 50 | 3 | 2.5 | 475 | 764 | 9 |
| 32226 | 130 | 230 | 67.75 | 64 | 54 | 4 | 3 | 549 | 895 | 11.3 |
