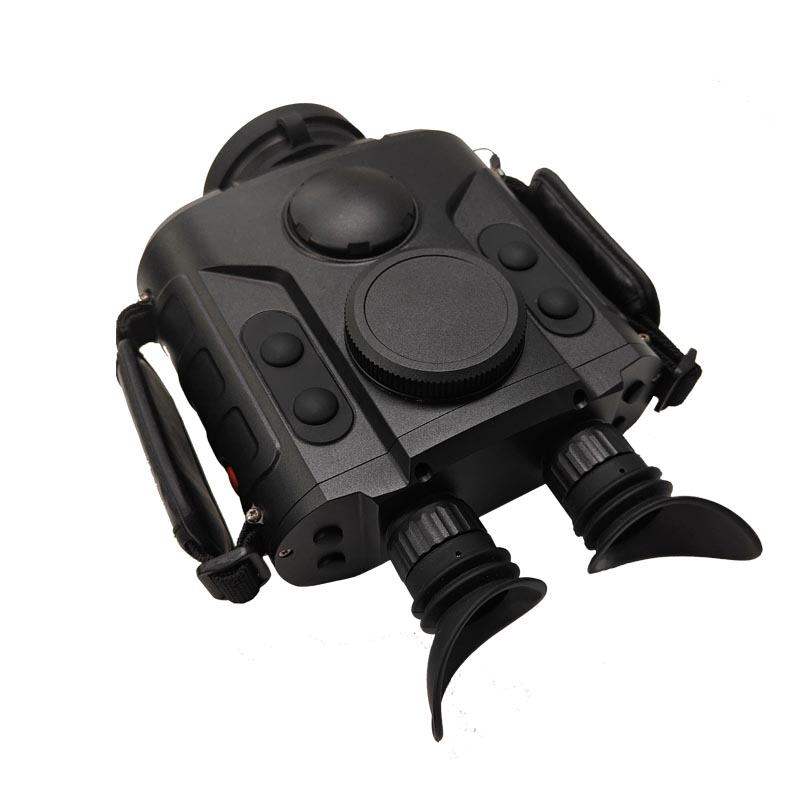

MP8-U非制冷多功能雙目
為目標識別提供清晰的熱圖像和可見圖像
內置GPS、DMC和LRF可提供目標距離和定位
具有微光可見圖像和激光指示器的更詳細目標信息
適用于各種夜景、、監視和安全以及邊境巡邏應用MP8-U
Uncooled Multifunctional Binocular
Provides crisp and clear thermal and visible imagery for target identification
Built-in GPS, DMC and LRF provide accurate range to target as well as precise location
More detailed target information with low light visible image and laser pointer
Be suitable for a wide range of night views, law enforcement, surveillance & security and border patrols applications
|
SPECIFICATIONS |
||
|
Items |
Specifications |
|
|
Thermal Imaging |
Thermal Detector |
UFPA, 640×512, 12 μm |
|
|
NETD |
≤40 mK |
|
|
Infrared Lens |
70mm f1.15, 6.3°×5° ±5% |
|
|
Recognition Range |
≥ 4km, vehicle-size target ≥ 1.5km, human |
|
Visual Imaging |
Visual Detector |
CMOS, 1920×1080, 1/2.8 |
|
|
Visual Lens |
WFOV 44°×34°, NFOV 2.4°×1.8° ±5% |
|
|
Recognition Range |
≥ 8km, vehicle-size target ≥ 3km, human |
|
Low-light Visual Imaging |
Detector |
CMOS, 800×600, 8 μm |
|
|
Sensitivity |
1×10-3 Lux |
|
|
Lens |
50mm f1.4, 7.3°×5.5°±5% |
|
Laser Rangefinder |
Ranging Capability |
Min range ≤50m, max range ≥7.1 km (sideview of vehicle, under 10 km visibility) |
|
|
False Detection Rate |
≤ 2% |
|
Positioning and Orientation |
Positioning Accuracy |
5m (CEP), 10m (PE) |
|
|
Angle Accuracy |
≤ 0.2° (RMS) pitch angle |
|
|
Refresh Rate |
1 Hz |
|
Laser Pointer |
Unvisible |
850nm, 30mW |
|
|
Visible |
520nm Green, 30mW |
|
Display |
Eyepiece |
OLED, 1920×1080, 0.71”, binocular |
|
|
Exit Pupil |
8 mm |
|
Video Recording |
Storage size |
≥ 64G |
|
Interfaces |
Communication |
Standard USB, RS232 |
|
|
Video Output |
PAL, HDMI |
|
Physical |
Weight |
≤ 2.3 Kg (battery included) |
|
|
Size (L×W×H) |
240mm×210mm×100mm |
