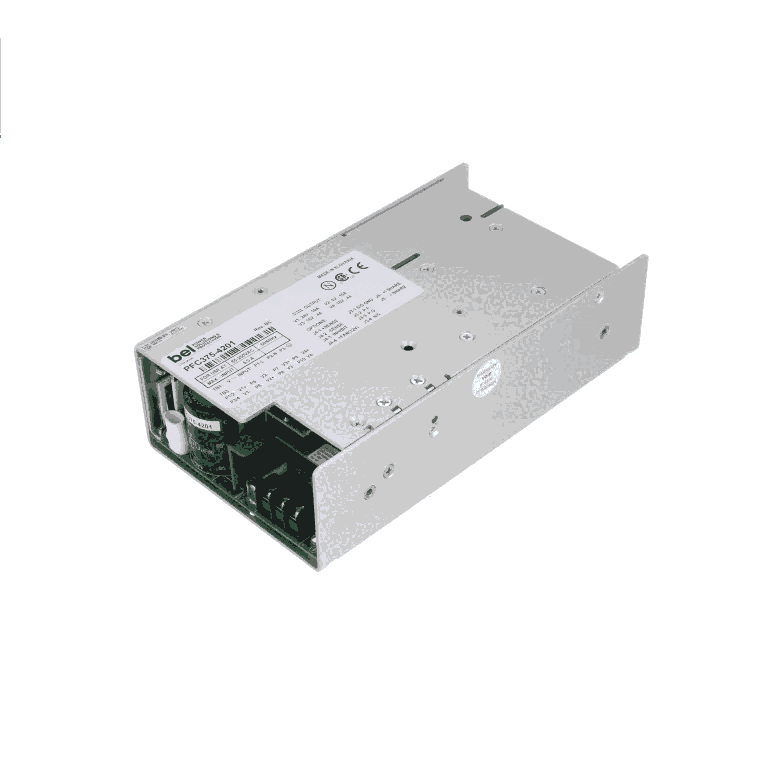

PFC375-4201 開關電源 Bel Power Solutions

MBC60-3002G
MBC60-3003G
MPB125-1012G
MPB125-2005G
MPB125-2012G
MPB125-2024G
MPB125-2048G
MPB125-3000G
MPB125-4350G
MPB125-4350RG
MPB150-2012G
MPB150-2024G
MPB150-2048G
MPU150-4000
MPU150-4350
MPU150-4350G
MPU200-1012G
MPU200-1024G
PET1600-12-074NA
PET2000-12-074NA
PET800-12-074NA
PFC250-1005
PFC250-1015
PFC250-1024
PFC250-1024F
PFC375-1012
PFC375-1024
PFC375-1024F
PFC375-4000
PFC375-4000F
PFC375-4002
PFC375-4200
PFC375-4200F
PFC375-4201
PFC375-4201F
PFC500-1024
PFC500-1024F
PFC500-1028F
PFC500-1048
PFC500-1048F

Configuration     Enclosed
Input Current     6 A (RMS) (Max.)
Input Voltage     100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range     85-264 VAC
Insulation Resistance     10 Megohms (Nom.)
Leakage Current     2.0 mA (Max.)
Line Regulation     0.5, 0.4, 0.5, 0.5 %
Load Regulation     0.8, 0.8, 0.8, 0.8 %
Mounting Type     Panel Mount
Noise Rating     1 %
Number of Outputs     4 Output
Operating Temperature     0 to +50 °C @ 100% Load
Operation     PFC
Output Current     10A@5V, 4A@15V, 4A@15V, 10A@24V
Output Power     375 W
Output Voltage     5 VDC, 15 VDC, 15 VDC, 24 VDC
Power Factor     0.98 W/VA (Min.)
Power Rating     375 W
Primary Type     AC-DC
Product Header     PFC375 AC-DC Series Power Supply
Ripple Output     1%(p-p)
Series     PerFormanCe PFC375 Series
Special Features     Current Share ; Power Fail Signal ; Power Good Signal ; Remote Sense
Temperature Coefficient     +/-0.05 %/°C (after 15 minute warnup)
Turn On Rise Time     10 ms (Nom.)

Type     Industrial
