Merkel 防塵圈 PT2型

產品特點

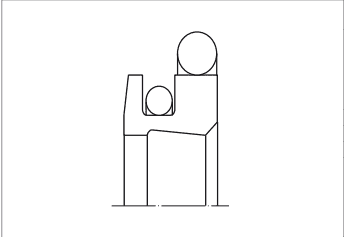

由一個帶有密封刃口和防塵刃口的PTFE異形圈和以及2個

用作預加載元件的O-形圈組成的雙唇口防塵圈。

產品優點

這種雙唇口防塵圈用來提供整體密封性。雙唇口防塵圈PT 2

型主要與我們的活塞桿密封圈OMS-S型結合使用。建議在

密封圈與防塵圈之間設置一個卸壓回油孔。

■■ 在工作過程中，有極好的調節與定位能力

■■ 低摩擦，沒有粘滑現象

■■ 對于行程短和頻率高的使用條件，可以更換材料定做

■■特別適用于大直徑活塞桿

推薦應用

材料配方

材料代號

PTFE/青銅復合材料PTFE B602

注塑機，液壓機，農業機械，冶金機械，冶金油缸

PTFE圈

工作條件

材料85 NBR B247 85 FKM K664

溫度范圍℃

液壓油 HL，HLP －30 ... +100 －10 ... +200

HFA 流體- -

HFB 流體- -

HFC 流體- -

HFD 流體- －10 ... +200

水- -

HETG （油菜籽油） －30 ... +80 －10 ... +80

HEES （合成酯） －30 ... +80 －10 ... +100

HEPG （乙二醇） －30 ... +60 －10 ... +80

礦物油脂－30 ... +100 －10 ... +200

線速度 m/s 5

材料代號硬度

丁腈橡膠 NBR NBR 邵氏A 70度

氟橡膠 FKM FKM 邵氏A 70度

O型圈

設計要點

請遵守我們的通用設計準則→參照技術手冊

表面加工精度

峰谷高度Ra Rmax

滑動表面* *

溝槽底面≤1.6 um ≤6.3 um

溝槽側面≤3.0 um ≤15.0 um

*作防塵圈使用時，滑動表面的粗糙度應與安裝的密封圈相適應。

安裝和裝配

仔細裝配是保證防塵圈PT2功能正常的先決條件。一般來

說，把防塵圈捏成腎型，就可以快速而簡便地裝配－見技

術手冊。 對于尺寸大于100mm小于150mm，必須使用安

裝工具；小于100mm，安裝溝槽必須是開式。

導入角

倒角的長度和角度，應與活塞桿所用的密封圈相適應

d*D*H*L                   訂貨號          材料

100*122,2*13,5*6,3        24359838        NBR+PTFEB602

100*122,2*13,5*6,3        49025565        FKM+PTFEB602

101,6*123,8*13,5*6,3      24367430        FKM+PTFEB602

110*132,2*13,5*6,3        24360999        FKM+PTFEB602

110*132,2*13,5*6,3        24361474        NBR+PTFEB602

120*142,2*13,5*6,3        24357224        NBR+PTFEB602

125*147,2*13,5*6,3        24373115        NBR+PTFEB602

125*147,2*13,5*6,3        49024812        FKM+PTFEB602

130*152,2*13,5*6,3        24358280        FKM+PTFEB602

130*152,2*13,5*6,3        24361475        NBR+PTFEB602

139,7*161,9*13,5*6,3      24361457        NBR+PTFEB602

140*162,2*13,5*6,3        529583          FKM+PTFEB602

140*162,2*13,5*6,3        24344542        NBR+PTFEB602

150*172,2*13,5*6,3        24357793        FKM+PTFEB602

150*172,2*13,5*6,3        24360778        NBR+PTFEB602

160*182,2*13,5*6,3        24347042        NBR+PTFEB602

160*182,2*13,5*6,3        24348020        FKM+PTFEB602

170*192,2*13,5*6,3        24344540        NBR+PTFEB602

170*192,2*13,5*6,3        24357223        FKM+PTFEB602

180*202,2*13,5*6,3        24350643        NBR+PTFEB602

180*202,2*13,5*6,3        24357393        FKM+PTFEB602

190*212,2*13,5*6,3        24368087        NBR+PTFEB602

200*222,2*13,5*6,3        24353154        NBR+PTFEB602

210*232,2*13,5*6,3        24375895        NBR+PTFEB602

220*242,2*13,5*6,3        24353169        NBR+PTFEB602

228,6*250,8*13,5*6,3      24360117        NBR+PTFEB602

230*254,2*13,5*6,3        24355054        NBR+PTFEB602

240*264,2*13,5*6,3        24356322        NBR+PTFEB602

250*274,2*13,5*6,3        24371138        NBR+PTFEB602

260*284,2*13,5*6,3        24352166        NBR+PTFEB602

275*299,2*13,5*6,3        24351463        NBR+PTFEB602

280*304,2*13,5*6,3        24360995        NBR+PTFEB602

290*314,2*13,5*6,3        49026457        NBR+PTFEB602

295*319,2*13,5*6,3        24359585        NBR+PTFEB602

300*333*18,4*8,1          24348115        NBR+PTFEB602

300*333*18,4*8,1          24356968        FKM+PTFEB602

320*353*18,4*8,1          524609          NBR+PTFEB602

330,2*363,2*18,4*8,1      24358312        NBR+PTFEB602

340*373*18,4*8,1          526102          NBR+PTFEB602

340*373*18,4*8,1          24358735        FKM+PTFEB602

350*383*18,4*8,1          24337999        NBR+PTFEB602

350*383*18,4*8,1          49027323        FKM+PTFEB602

360*393*18,4*8,1          24331443        NBR+PTFEB602

370*403*18,4*8,1          24344424        NBR+PTFEB602

380*413*18,4*8,1          24346896        NBR+PTFEB602

380*413*18,4*8,1          49035995        FKM+PTFEB602

385*418*18,4*8,1          24353627        NBR+PTFEB602

400*433*18,4*8,1          24353007        NBR+PTFEB602

400*433*18,4*8,1          49016772        FKM+PTFEB602

420*453*18,4*8,1          24331444        NBR+PTFEB602

430*463*18,4*8,1          24354755        NBR+PTFEB602

431,8*464,8*18,4*8,1      24342995        NBR+PTFEB602

440*473*18,4*8,1          24363240        NBR+PTFEB602

450*483*18,4*8,1          24358970        NBR+PTFEB602

470*503*18,4*8,1          24327546        FKM+PTFEB602

470*503*18,4*8,1          49033427        NBR+PTFEB602

480*513*18,4*8,1          24338000        NBR+PTFEB602

500*533*18,4*8,1          24347054        FKM+PTFEB602

500*533*18,4*8,1          24360955        NBR+PTFEB602

510*543*18,4*8,1          24372692        NBR+PTFEB602

520*553*18,4*8,1          24370787        FKM+PTFEB602

530*563*18,4*8,1          24363241        NBR+PTFEB602

540*573*18,4*8,1          24371034        FKM+PTFEB602

550*583*18,4*8,1          24362840        NBR+PTFEB602

550*583*18,4*8,1          49044471        FKM+PTFEB602

560*593*18,4*8,1          533488          FKM+PTFEB602

560*593*18,4*8,1          24339610        NBR+PTFEB602

600*633*18,4*8,1          24331445        NBR+PTFEB602

620*656,5*19,8*9,5        49014759        NBR+PTFEB602

630*666,5*19,8*9,5        24349708        NBR+PTFEB602

640*676,5*19,8*9,5        24348256        NBR+PTFEB602

640*676,5*19,8*9,5        24357491        FKM+PTFEB602

670*706,5*19,8*9,5        24346164        NBR+PTFEB602

700*736,5*19,8*9,5        49035756        NBR+PTFEB602

730*766,5*19,8*9,5        531292          NBR+PTFEB602

740*776,5*19,8*9,5        529324          FKM+PTFEB602

740*776,5*19,8*9,5        24344400        NBR+PTFEB602

748*784,5*19,8*9,5        49035130        NBR+PTFEB602

749*785,5*19,8*9,5        49009337        NBR+PTFEB602

750*786,5*19,8*9,5        24367379        NBR+PTFEB602

770*806,5*19,8*9,5        24353425        FKM+PTFEB602

790*826,5*19,8*9,5        24368078        NBR+PTFEB602

795*831,5*19,8*9,5        24344331        NBR+PTFEB602

800*836,5*19,8*9,5        24341037        NBR+PTFEB602

800*836,5*19,8*9,5        24358811        FKM+PTFEB602

820*856,5*19,8*9,5        24349213        NBR+PTFEB602

820*856,5*19,8*9,5        24357495        FKM+PTFEB602

830*866,5*19,8*9,5        24344384        NBR+PTFEB602

850*886,5*19,8*9,5        24314623        NBR+PTFEB602

860*896,5*19,8*9,5        24374444        NBR+PTFEB602

900*936,5*19,8*9,5        24374392        NBR+PTFEB602

950*986,5*19,8*9,5        24356339        NBR+PTFEB602

950*986,5*19,8*9,5        24357110        FKM+PTFEB602

970*1006,5*19,8*9,5       24359661        NBR+PTFEB602

1130*1166,5*19,8*9,5      530018          NBR+PTFEB602

1160*1196,5*19,8*9,5      24371028        NBR+PTFEB602

1320*1356,5*19,8*9,5      527134          NBR+PTFEB602

1375*1411,5*19,8*9,5      49004721        NBR+PTFEB604

1500*1536,5*19,8*9,5      49006761        NBR+PTFEB604
