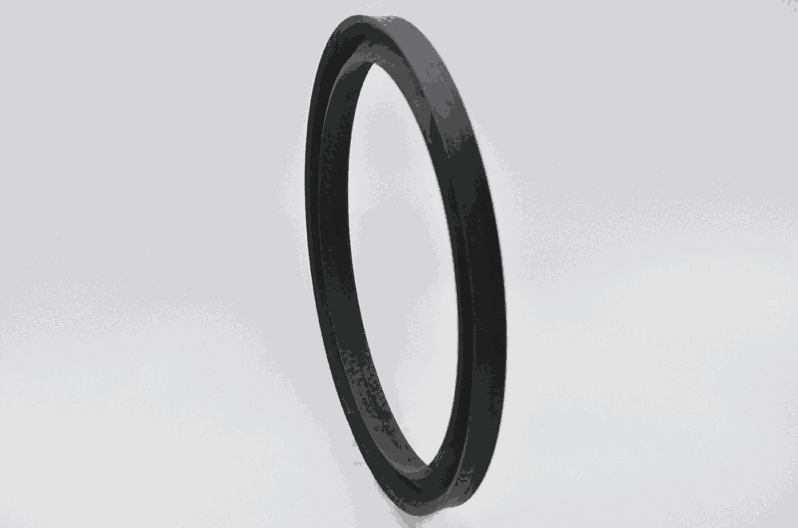

液壓密封C1型

C1型密封件滿足液壓和氣動設備對小結構密封件的需求，盡管密封件截面和高度很小，但密封效果極佳。

由于密封接觸面小，摩擦力極小，并且由于特殊設計，因而不需要支撐擋圈。C1也可應用于有潤滑的壓縮空氣介質。

應用范圍：

工作壓力：≤160bar(液壓)

≤16bar(氣動)

工作溫度: -35至+100°C（液壓）

-35至+80°C（氣動）

表面速度：≤0.5m/s(液壓)

≤1.0m/s(氣動)

C1型密封件特別適用于柱塞、活塞

桿、閥芯、閥的提升以及低速氣動

轉子（V≤0.2m/s.P≤20bar）。

當選擇某一直徑的密封件時，應盡可能選擇最大的截面。

安裝：

C1型密封圈的外徑大于正常尺寸、可確保所需的緊固安裝。一旦裝好，則密封唇直徑將保證理想的尺寸。C1型密封圈可以很容易地裝入溝槽。

注：名義直徑≤25mm，應根據密封件截面和溝槽位置采用開式溝槽。

材料：

標準材料選擇以丁腈膠為基體的合成橡膠，邵氏硬度A約70度。對于高溫及耐化學介質的工況，推薦使用本公司氟橡膠材料，材料編號為：V3664。

若有特殊要求（溫度、速度、用于水、HFA液、HFB液等介質中），請與本公司的咨詢服務部聯系，以便向您推薦合適的材料和結構

?d*?D*H/L 訂貨號

2*7*3.5/4 C10003N3571

3*7*3/4.5 C10005N3571

3*9*4.5/5 C10009N3571

3*10*5/5.5 C10011N3571

4*8*3/3.5 C10013N3571

4*9*3.5/4 C10016N3571

4*10*4.2/4.7 C10019N3571

4*12*4.5/5 C10022N3571

4*12*5.5/6 C10024N3571

4*14*5.8/6.3 C10028N3571

4.5*8*3/3.5 C10032N3571

5*9*2.5/3 C10035N3571

5*10*4/4.5 C10038N3571

5*12*4.5/5 C10041N3571

6*10*3/3.5 C10055N3571

6*12*4.2/4.7 C10058N3571

6*13*5/5.5 C10059N3571

6*15*7/7.5 C10062N3571

6*16*5/5.5 C10065N3571

7*13*4/4.5 C10070N3571

8*14*4/4.5 C10074N3571

8*14.5*4.5/5 C10077N3571

8*16*5.5/6 C10080N3571

8*18*8/8.5 C10083N3571

9*14*3.5/4 C10087N3571

9.3*14*3/3.5 C10090N3571

9.5*18.5*7/7.5 C10094N3571

10*13.6*2.3/2.7 C11002N3571

10*15*3.5/4 C11005N3571

10*16*4.5/5 C11008N3571

10*16*6/6.5 C11011N3571

10*18*5.5/6 C11015N3571

10*20*7/7.5 C11018N3571

10.4*15.2*3.5/4 C11020N3571

11*17*4/4.5 C11022N3571

11*18*4.5/5 C11025N3571

12*18.5*4.5/5 C11028N3571

12*19*4.5/5 C11030N3571

12*20*5.5/6 C11033N3571

12.75*19.2*3.8/4.3 C11035N3571

13*17.5*2.8/3.3 C11036N3571

13.8*22*5.5/6 C11037N3571

14*19*3.5/4 C11039N3571

14*20*4.8/5.3 C11040N3571

14*22*5.5/6 C11041N3571

14*25*8/8.5 C11042N3571

15*22*5/5.5 C11044N3571

15.8*24*5.5/6 C11047N3571

16*22.5*4.5/5 C11049N3571

16*23*5.5/6 C11051N3571

16*23.5*5.5/6 C11052N3571

16*24*5.5/6 C11053N3571

16*26*7/7.5 C11056N3571

16*27*7.5/8 C11058N3571

17*25*5.5/6 C11060N3571

18*25*4.5/5 C11062N3571

18*25*5.5/6 C11063N3571

18*26*5.5/6 C11066N3571

18*30*8.5/9.5 C11070N3571

18.5*25.5*5.5/6 C11074N3571

19*25*5/5.5 C11079N3571

20*26*4.8/5.3 C12005N3571

20*28*5.5/6 C12009N3571

20*28*8/8.5 C12013N3571

20*30*7/7.5 C12020N3571

20*32*7/7.5 C12022N3571

22*29*5.5/6 C12025N3571

22*30*5.5/6 C12029N3571

22*32*7/7.5 C12031N3571

22*32*8/8.5 C12030N3571

22*34*8.5/9.5 C12033N3571

23*31*5.5/6 C12038N3571

24*32*5.5/6 C12043N3571

25*32*5.5/6 C12053N3571

25*33*5.5/6 C12058N3571

25*33*8/8.5 C12061N3571

25*35*6/6.5 C12064N3571

25*35*7/7.5 C12065N3571

25*36*8/8.5 C12066N3571

25*37*8.5/9.5 C12069N3571

25*40*10/11 C12075N3571

26*36*7/7.5 C12078N3571

28*36*5.5/6 C12085N3571

28*38*7/7.5 C12089N3571

28*40*8.5/9.5 C12095N3571

30*38*5.5/6 C13005N3571

30*38*8/8.5 C13010N3571

30*40*7/7.5 C13015N3571

30*42*8/8.5 C13019N3571

30*42*8.5/9.5 C13020N3571

32*40*5.5/6 C13025N3571

32*42*7/7.5 C13030N3571

32*45*10/11 C13032N3571

33*43*7/7.5 C13035N3571

34*44*7/7.5 C13040N3571

35*43*8/8.5 C13045N3571

35*45*7/7.5 C13050N3571

36*46*7/7.5 C13055N3571

36*50*10/11 C13057N3571

37*47*7/7.5 C13059N3571

38*48*7/7.5 C13060N3571

40*48*8/8.5 C14010N3571

40*50*7/7.5 C14015N3571

40*52*8.5/9.5 C14020N3571

42*52*7/7.5 C14025N3571

44*54*7/7.5 C14030N3571

45*55*7/7.5 C14035N3571

45*60*10/11 C14040N3571

46*56*7/7.5 C14046N3571

47*57*7/7.5 C14055N3571

48*58*7/7.5 C14060N3571

50*58*8/8.5 C15005N3571

50*60*7/7.5 C15010N3571

50*63*8.5/9.5 C15015N3571

50*63*12/13 C15017N3571

50*66*11/12 C15020N3571

54*64*7/7.5 C15035N3571

55*65*7/7.5 C15040N3571

56*66*7/7.5 C15043N3571

56*70*12/13 C15044N3571

57*67*7/7.5 C15053N3571

58*68*7/7.5 C15058N3571

59*71*7.5/8 C15085N3571

60*72*8.5/9.5 C16005N3571

60*80*14/15 C16010N3571

63*73*7/7.5 C16025N3571

63*75*8.5/9.5 C16035N3571

63*80*16/17 C16037N3571

64*76*7.5/8 C16040N3571

65*77*8.5/9.5 C16055N3571

68*80*8.5/9.5 C16070N3571

70*82*8.5/9.5 C17003N3571

75*87*8.5/9.5 C17020N3571

75*95*14/15 C17030N3571

80*90*7/7.5 C18010N3571

80*92*7.5/8 C18013N3571

80*92*8.5/9.5 C18015N3571

80*100*14/15 C18025N3571

85*97*8.5/9.5 C18040N3571

85*100*10/11 C18045N3571

88*100*8.5/9.5 C18070N3571

90*102*8.5/9.5 C19015N3571

90*110*16/17 C19018N3571

95*107*8.5/9.5 C19035N3571

100*110*7/7.5 C1A010N3571

100*115*10/11 C1A015N3571

105*120*10/11 C1A051N3571

105*125*12/13 C1A055N3571

110*125*10/11 C1B015N3571

110*130*14/15 C1B020N3571

115*130*10/11 C1B040N3571

115*135*14/15 C1B045N3571

120*135*10/11 C1C015N3571

120*140*14/15 C1C020N3571

125*140*10/11 C1C035N3571

125*145*12/13 C1C037N3571

130*145*10/11 C1D015N3571

130*150*14/15 C1D020N3571

135*150*10/11 C1D035N3571

140*160*14/15 C1E015N3571

142*157*10/11 C1E035N3571

145*165*12/13 C1E049N3571

145*165*13/14 C1E050N3571

150*170*14/15 C1F020N3571

154*176*15.5/16.5 C1F040N3571

155*170*10/11 C1F053N3571

155*175*14/15 C1F055N3571

160*180*14/15 C1G015N3571

160*184*15/16 C1G024N3571

166*188*15.5/16.5 C1G040N3571

170*190*14/15 C1H007N3571

170*194*15/16 C1H010N3571

180*200*14/15 C1J005N3571

185*210*17.5/18.5 C1J025N3571

185*215*20/21 C1J032N3571

190*210*14/15 C1K010N3571

200*220*14/15 C1L015N3571

200*230*15/16 C1L025N3571

210*230*14/15 C1L040N3571

220*250*20/21 C1M017N3571

225*250*14/15 C1M020N3571

235*265*21/22 C1M030N3571

240*270*20/21 C1N035N3571

260*290*21/22 C1O010N3571

280*310*20/21 C1O031N3571

320*350*20/21 C1Q050N3571
