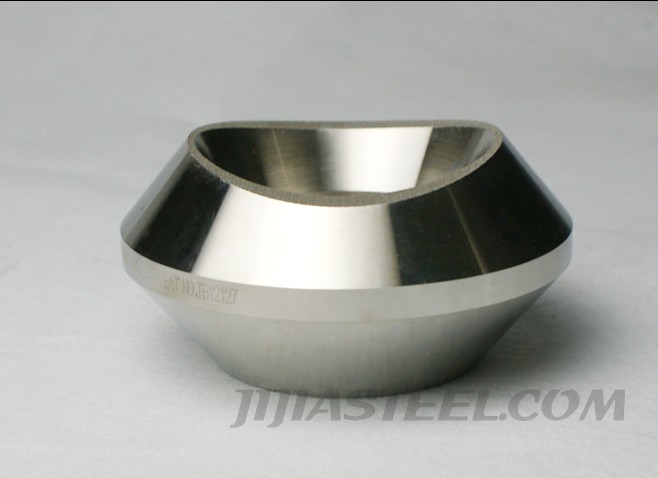

尺寸單位為毫米
| 支管公稱管子規格 Out-Llet Pipe NPS(in) | A | C | D | F | J(Min) |
| 3000磅 公稱壁厚STD/xs |
|
|
|||
| 1/8 | 19.0 | 13.7 | 10.9 | 17.3 | 10.0 |
| 1/4 | 19.0 | 13.7 | 14.4 | 22.0 | 10.0 |
| 3/8 | 21.0 | 17.1 | 17.8 | 25.8 | 10.0 |
| 1/2 | 25.0 | 21.3 | 22.0 | 31.3 | 10.0 |
| 3/4 | 27.0 | 26.7 | 27.3 | 37.1 | 13.0 |
| 1 | 33.0 | 33.4 | 34.1 | 45.5 | 13.0 |
| 1 1/4 | 33.0 | 42.2 | 42.8 | 54.9 | 13.0 |
| 1 1/2 | 35.0 | 48.3 | 48.9 | 61.6 | 13.0 |
| 2 | 38.0 | 60.3 | 61.4 | 75.3 | 16.0 |
| 2 1/2 | 46.0 | 73.0 | 74.2 | 91.7 | 16.0 |
| 3 | 51.0 | 88.9 | 90.1 | 109.1 | 16.0 |
| 4 | 57.0 | 114.3 | 115.8 | 137.2 | 19.0 |
6000磅 公稱壁厚S 160/xxs
| 1/2 | 32.0 | 16.6 | 22.0 | 33.9 | 10.0 |
| 3/4 | 37.0 | 21.2 | 27.3 | 41.2 | 13.0 |
| 1 | 40.0 | 27.0 | 34.1 | 49.9 | 13.0 |
| 1 1/4 | 41.0 | 35.8 | 42.8 | 58.6 | 13.0 |
| 1 1/2 | 43.0 | 41.2 | 48.9 | 66.7 | 13.0 |
| 2 | 52.0 | 51.6 | 61.4 | 83.2 | 16.0 |
注:
(1)螺紋按GB/T12716 ASME B1.20.1制造
(2)4"以下(含4")3000磅級管座,主管尺寸與標志一致
